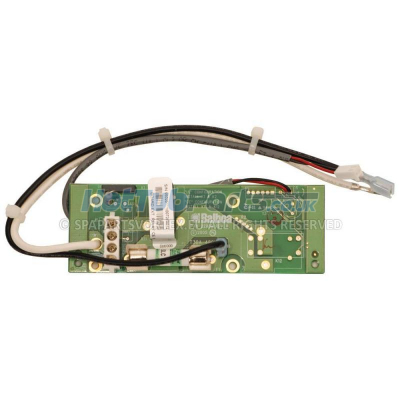

Balboa Expander Board Relay 30amp (GS-GL) - 55025
The Balboa Expander Board Relay 30amp GS-GL - 55025 is designed specifically for use with hot tubs and spas. This Balboa relay expander PCB is used with compatible GS and GL control systems to add one additional single-speed pump where higher-current 30A fuse protection is required.
Compatible Control Boxes
- Balboa GS series control boxes, selected models only
- Balboa GL series control boxes, selected models only
- Systems already designed and configured to accept a pump relay expander
Technical Specifications
- Brand: Balboa
- Balboa Part Number: 55025
- Product Type: Expander Board
- Model / Series: GS and GL
- Input Voltage: 230V
- Frequency: 50Hz
- Output Support: One Additional Single-Speed Pump
- Pump Type: 1-Speed
- Fuse Protection: 30A
- Length: 135 mm
- Height: 64 mm
- Application: High-Current GS / GL Pump Expansion
Fitting Guide
This PCB works as an auxiliary relay board alongside a compatible Balboa GS or GL main control board. It is not a replacement for the main spa PCB and cannot operate independently. The connected load must be a suitable single-speed pump, with the current draw within the board and fuse rating.
The 55025 board is the higher-current option for GS and GL systems where 30A protection is needed. For standard current pump or blower applications, a smaller expander such as the 53547 type may be more suitable. For 2-speed pump expansion, a different expander board is required.
Dipswitch Settings
DIP switch and setup requirements depend on the exact GS or GL control box, the programmed equipment layout and the pump being added. The main board must be configured for the extra output before the relay board will operate correctly.
- Confirm the spa pack is a compatible GS or GL system.
- Match the replacement board to the existing relay board part number where possible.
- Record all existing DIP switch positions before removal.
- Use the correct Balboa tech sheet for the exact control box model.
Important Notes
This expander PCB is for compatible Balboa GS and GL systems only. It is intended for one additional single-speed pump and should not be used as a universal expander board for other Balboa systems, blower outputs or 2-speed pump applications unless the relevant control box documentation confirms compatibility.
Installation involves mains voltage components inside the spa control system and is for a qualified electrician, experienced spa engineer or competent individual. Incorrect wiring, wrong system selection or unsuitable pump loading can damage the expander board, main PCB or connected equipment.
