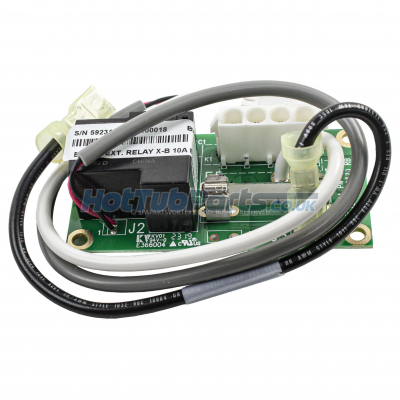

Balboa BP200UX Expander Board - Pump - 59233-01
The Balboa BP200UX Expander Board Pump - 59233-01 is designed specifically for use with hot tubs and spas. This compact pump expander PCB is used with compatible BP200UX control systems to add control for one additional pump, with on-board fuse protection for the pump circuit.
Compatible Control Boxes
- Balboa BP200UX control systems only
- Used where the BP200UX setup is configured for an additional pump
- Suitable for BP200UX systems where pump expansion is required instead of blower expansion
Technical Specifications
- Brand: Balboa
- Part Number: 59233-01
- Product Type: Pump Expander Board
- Compatible System: BP200UX Only
- Input Voltage: 230V
- Frequency: 50Hz
- Pump Support: One Additional Pump
- Fuse Protection: 15 AMP
- Board Length: 85 mm
- Board Height: 41 mm
- System Type: Balboa BP Series
- Board Function: Additional Pump Relay Control
Fitting Guide
This board is installed inside a BP200UX control box and works alongside the main PCB. It provides the additional relay control required for one extra pump and must be configured through the BP200UX system setup so the main board knows which equipment is fitted.
The BP200UX platform only allows one expander board to be used at a time. This pump expander cannot be fitted together with the BP200UX blower expander, often referenced as CB-EX231 or part number 59231.
Dipswitch Settings
The system setup must match the fitted equipment. Where this pump expander is installed, the BP200UX control system must be set to a pump expansion setup rather than a blower expansion setup. DIP switch and setup selection details should be taken from the BP200UX wiring diagram or tech sheet for the exact spa configuration.
- Use the BP200UX setup mode to select the correct equipment layout.
- Do not configure the system for the blower expander when this pump board is fitted.
- Match the pump output and current draw to the 15 AMP protected circuit.
- Copy existing valid settings only where the original system used the same pump expander arrangement.
Important Notes
This is an expander board, not a main spa control PCB. It requires a compatible BP200UX main board and will not operate on its own. It is not suitable for other Balboa systems unless the technical documentation confirms BP200UX pump expander compatibility.
The connected pump must not exceed the 15 AMP fuse protection rating. Installation involves mains voltage wiring inside the spa control box and is for a qualified electrician, experienced spa engineer or competent individual. Incorrect setup selection, fitting the wrong expander type, overloading the pump output or using the board on an incompatible control system can cause faults, board damage or warranty issues.
