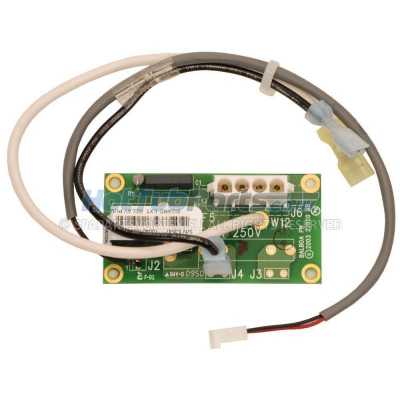

Balboa Expander Board Pump Relay (GS-GL) - 53547-01
The Balboa Expander Board Pump Relay GS-GL - 53547-01 is designed specifically for use with hot tubs and spas. This compact Balboa expander PCB is used with compatible GS and GL control systems to add one additional 1-speed pump or blower output where the main control board and setup allow it.
Compatible Control Boxes
- Balboa GS series control boxes, selected models only
- Balboa GL series control boxes, selected models only
- Systems already designed to accept a 1-speed pump or blower relay expander
Technical Specifications
- Brand: Balboa
- Balboa Part Number: 53547-01
- Product Type: Expander Board
- Model / Series: GS and GL
- Input Voltage: 230V
- Frequency: 50Hz
- Output Support: One Additional 1-Speed Pump or Blower
- Pump Type: 1-Speed Only
- Blower Support: Yes, where supported by the system setup
- Length: 80 mm
- Height: 41 mm
- Application: GS / GL Pump or Blower Expansion
Fitting Guide
This PCB works as an expansion relay board alongside a compatible GS or GL main control board. It is not a main PCB and cannot operate on its own. The connected device must be either a suitable 1-speed pump or a blower, depending on the control box configuration.
For applications that need 30A fuse protection, a different expander such as the 55025 type should be used instead. This 53547-01 board is intended for standard 1-speed pump or blower expansion, where the original system wiring and programming support it.
Dipswitch Settings
DIP switch requirements are set by the specific GS or GL spa pack and the equipment layout. The main control board must be configured for the additional output before the relay board will function correctly.
- Confirm the control box is a compatible GS or GL model.
- Check whether the added device is being configured as a 1-speed pump or blower.
- Record the existing DIP switch positions before replacing any board.
- Use the correct Balboa tech sheet for the exact control box model.
Important Notes
Installation involves mains voltage components inside the spa control system and is for a qualified electrician, experienced spa engineer or competent individual. Incorrect compatibility checks, wiring or configuration can damage the main board, expander board or connected equipment.
