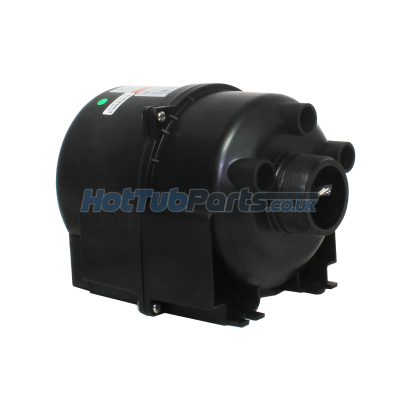

LX APR800 V2 Hot Tub Air Blower

LX APR800 V2 Hot Tub Air Blower

The LX APR800 V2 Hot Tub Air Blower - APR800-V2 is designed specifically for use with hot tubs and spas. This heated air blower combines a 700W motor with a 180W heater to produce warm air bubbles, helping reduce cooling during use while providing enough airflow for systems running around 16 to 32 air jets. It is commonly fitted to Danz spas and many Chinese-built hot tubs, and is also used on systems with Balboa, Gecko, Aeware, SpaNet, Hydroquip and Pentair controls where the connection type and output match.

Key Features

• The blower uses a dual-stage V2 impeller to produce higher air pressure, making it suitable for installations with water depths up to 1000mm.
• A built-in 180W heating element warms the air output to around 40C, which helps avoid cold bubbles in hot tubs and spas.
• The outlet connection is a 1.5" / 40mm threaded barrel union with 48mm outside diameter, supplied for standard spa pipework connection.
• Electrical connection is via an AMP plug with a 150cm cable, with adapter options available where Mini J&J or in.link style connections are used.
• The blower is rated for 220-240VAC at 50/60Hz and is commonly used as a replacement for failed air blowers in the 850-1100W range.
• It can power approximately 16-32 air jets with a maximum airflow of 2.6m/min, making it suitable for full-seat bubble systems and air channels.
• Heat-resistant ABS housing, an internal thermal fuse and motor protection help support reliable operation in spa environments.
• Common compatibility includes Danz spas and other Chinese-manufactured hot tubs using AMP-connected blower circuits.
• It is also found with control systems from Balboa, Aeware in.y, Davey Spaquip, Gecko, Hydroquip, Pentair, Maax, Heritage and Lanark where the plumbing and plug type are correct.

Blower Specifications

• Manufacturer: LX Whirlpool
• Model: APR800-V2
• Alternative Part Numbers: SpaNet XS-10B
• Type: Heated Air Blower, Dual-Stage
• Total Power: 880W (700W motor + 180W heater)
• Voltage: 220-240VAC
• Frequency: 50/60Hz
• Current Draw: 3.3-4A
• Maximum Airflow: 2.6m/min
• Heated Air Output: Up To 40C
• Operating Depth: Up To 1000mm Water Depth
• Jet Capacity: 16-32 Jets
• Connection Size: 1.5" / 40mm Threaded Barrel Union, 48mm OD
• Plug Type: AMP Connector
• Dimensions: 245mm body length, 285mm including union; 170-174mm high; 168-170mm wide; 100mm fixing point centres

Fitting Guide

If replacing an LX APR800 V2 or APR800-V2 like for like, switch the spa power off, remove the power cable from the spa control box, unthread the air outlet pipe connection, remove the fixings securing the blower in place, and install the replacement in reverse order. Check that the new blower matches the voltage, plug type, union size and mounting space before reconnecting.

For new installations, this unit is normally mounted horizontally with enough space around the housing for ventilation and future servicing. The standard connection is an AMP plug, often used with Balboa, Ethink and Aeware in.y systems; adapters can be used where Mini J&J or in.link connections are required for some Hydroquip, Pentair, Gecko, Aeware in.xe and in.xm packs. When solvent welding pipework, leave the blower disconnected while gluing the union to the pipe and allow fumes to clear fully before startup.
