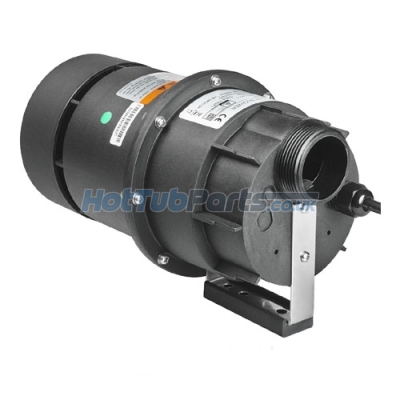

LX AP300 V2 Hot Tub Air Blower

LX AP300 V2 Hot Tub Air Blower

This LX AP300 V2 Hot Tub Air Blower - AP300-V2 is designed specifically for use with hot tubs and spas. It is a 300W air blower with LX's V2 double impeller design, built to provide steady air output for bubble systems on medium-sized spas, whirlpool baths and similar installations. Commonly used with a wide range of systems, it is often found on spas using control equipment such as Balboa, Gecko and Aeware, as well as various Chinese-built spa brands including Danz, AMC Winer, Cascade, MAAX, Monalisa and Trinity.

Key Features

• The V2 double impeller layout is designed to give a softer, more even air output with less high-frequency noise than earlier single impeller versions.
• The 300W motor is suited to systems running around 8 to 16 air jets, making it a practical choice for many 4 to 6 person hot tubs and spa baths.
• The reinforced heat-resistant ABS housing is built for the warm, enclosed conditions inside a spa cabinet.
• An angled mounting bracket allows the blower to be fitted upright or on its side to suit the available space.
• The air outlet uses a 1 inch threaded union connection, typically around 32 to 33mm outside diameter.
• The electrical lead is supplied at 1.5m long with an AMP-style plug for straightforward connection to compatible control systems.
• It can replace earlier AP300 versions where the connection size, voltage and plug type match.
• Compatible with many portable spas and whirlpool systems using standard AMP-style blower connections; Mini J&J adaptors are available separately where needed.

Blower Specifications

• Manufacturer: LX Whirlpool
• MPN: AP300-V2
• Alternative Part Number: BL-AP300
• Product Type: Spa Air Blower
• Power: 300W (0.4 HP)
• Voltage: 220-240V AC
• Frequency: 50/60 Hz
• Current Draw: 1.7A at 230V
• Airflow: Up to 1.4 m/min
• Noise Level: <72 dB(A)
• Recommended Jet Capacity: 8-16 Jets
• Impeller Type: Double Impeller (V2)
• Connection Size: 1" Threaded Union (32-33mm OD)
• Cable Length: 1.5m with AMP-Style Plug
• Dimensions: 245 x 132 x 151mm

Fitting Guide

If replacing a like-for-like LX AP300 V2 Hot Tub Air Blower or AP300-V2, switch off power to the spa first. Remove the blower power cable from the spa control box, unthread the air outlet pipe connection, remove the fixings holding the blower in place, then install the replacement in reverse order. This model uses a 1 inch threaded union and a 1.5m AMP-style lead, so checking the existing plumbing connection, supply voltage and plug type before fitting is recommended.

For new installations, the blower is intended to be mounted inside the spa cabinet with enough surrounding air space for cooling and future access. The bracket allows upright or side mounting depending on the cabinet layout. If the previous blower failed due to water ingress, check that the air line non-return valve is working correctly and that the pipework includes a suitable swan neck above water level. A bayonet union option may also be used where a glueless connection setup is preferred.
