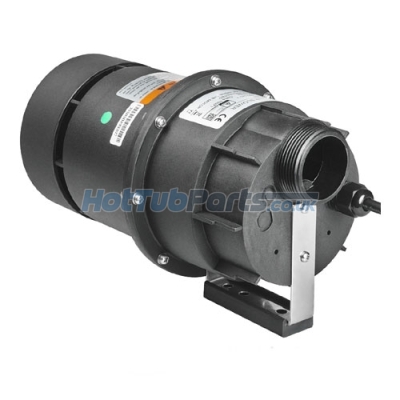

LX AP200 V2 Hot Tub Air Blower

LX AP200 V2 Hot Tub Air Blower

This LX AP200 V2 Hot Tub Air Blower - AP200-V2 is designed specifically for use with hot tubs and spas. It is a compact 200W air blower for bubble systems on hot tubs, whirlpool baths and smaller spa installations, using LX's V2 double impeller layout to produce a softer airflow with less high-frequency noise than single impeller versions. It is commonly used on spas fitted with control systems such as Balboa and Gecko Aeware in.ye, where a 1" threaded air connection and AMP-style electrical plug are required.

Key Features

• The V2 double impeller design helps give a smoother, more even air output for bubble massage while keeping running noise low.
• A dedicated low-noise motor keeps sound levels below 63 dB(A), making it suitable for domestic spa use.
• The blower uses a 1" threaded union connection, with an outside diameter of approximately 32-33.5mm, for the air outlet pipework.
• Electrical connection is via a 1.5m cable fitted with an AMP-style plug, with Mini J&J adapter options available separately where needed.
• Built-in thermal protection and a 2.0A internal fuse at 230V help protect the motor from overheating during operation.
• The reinforced high-temperature ABS housing is designed to cope with typical spa cabinet conditions.
• Class F motor insulation and carbon brushes rated for at least 1,000 hours continuous duty support consistent long-term use.
• Suitable for hot tubs, whirlpool baths and smaller spa systems using around 6-12 air jets.
• Often fitted as a replacement air blower on many Chinese-built spas and a range of European spa systems with matching pipework and plug type.

Blower Specifications

• Manufacturer: LX Whirlpool
• MPN: AP200-V2
• Product Type: Spa Air Blower
• Power: 200W (0.25 HP)
• Voltage: 220-240V
• Frequency: 50/60 Hz
• Current Draw: 1.2A
• Maximum Air Pressure: 0.8m (0.006 MPa)
• Air Volume: 0.8-1.3 m³/min
• Noise Level: <63 dB(A)
• Recommended Jet Capacity: 6-12 Jets
• Impeller Type: Double Impeller (V2)
• Union Connection: 1" Threaded (32-33.5mm OD)
• Connector Type: AMP-Style Plug with 1.5m Cable
• Dimensions: 290 × 155 × 175mm

Fitting Guide

If replacing a like-for-like LX AP200 V2 Hot Tub Air Blower or AP200-V2, switch off spa power first, remove the power cable from the spa control box, unthread the air outlet pipe connection, remove the fixings holding the blower in place, and install the replacement in reverse order. This unit is generally straightforward to swap where the existing blower uses the same 1" threaded union and AMP-style lead.

For new installations, the blower is intended for horizontal mounting inside the spa cabinet and should be positioned with adequate ventilation around it for cooling and with access for future servicing. The supplied cable length is 1.5m, and the blower is typically installed within 2m of the spa. Before fitting a replacement after water ingress, check that the air line one-way valve is working correctly. If solvent welding pipework, allow fumes to clear fully before running the blower, as trapped fumes in the airline can damage the unit. Always confirm voltage, plug type, connection size and available space before ordering.
