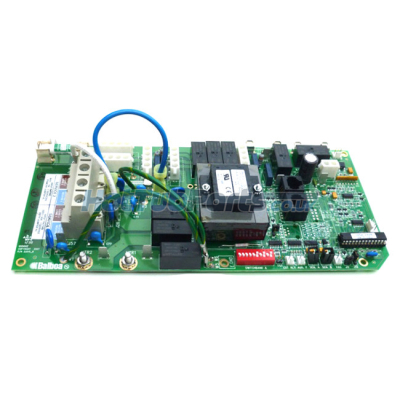

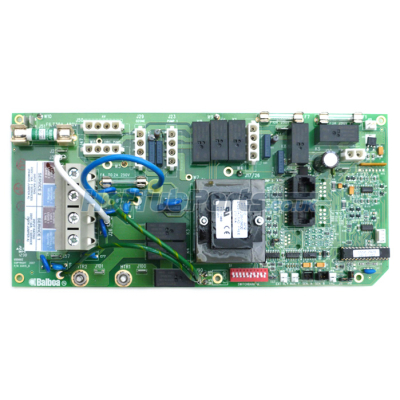

Balboa GS501SZ PCB - 54516
The Balboa GS501SZ PCB 54516 is designed specifically for use with hot tubs and spas. This replacement circuit board is used in Balboa GS501SZ control boxes and supports dual pump operation, heater control, ozone, lighting and optional blower output.
THIS PCB HAS BEEN DISCONTINUED BY BALBOA, PLEASE USE GS510SZ. When the stock runs out, you will need to upgrade to a full BP control system. Contact us for help.
Compatible Control Boxes
- Balboa GS501SZ control box
- Commonly used in Master Spa systems and others using the correct GS501SZ spa pack
Compatible Topside Controls
- Balboa VL700S
- Balboa VL701S
- Balboa VL702S
- Serial Standard VL range topside controls
Technical Specifications
- Brand: Balboa
- Model / Series: GS
- Product Type: PCB
- Replaces Part Numbers: 54515, 54516
- Input Voltage: 230V
- Frequency: 50Hz
- Pump 1: Single or dual-speed, with circulation pump if required
- J17 Port: Air blower or single-speed pump, 10A fuse protection
- Outputs: Heater, ozone and 12V light
- Dimensions: 280 mm x 130 mm
Fitting Guide
This PCB is intended as a replacement board for an existing GS501SZ control box with a confirmed board fault. It provides control for Pump 1, optional circulation setup, optional blower or single-speed pump through J17, heater, ozone and 12V lighting.
Before removal, record the existing plug positions, wiring layout and switch configuration from the old board. The replacement board may need to be set to match the connected spa equipment and the Serial Standard VL topside panel fitted to the system.
Dipswitch Settings
DIP switches set the board configuration for the pump layout, circulation arrangement and connected outputs. The original board settings are often the best starting point when the previous installation was correct and the spa equipment has not been changed.
- Match the settings to the GS501SZ control box configuration.
- Check the setup for Pump 1 and any circulation pump arrangement.
- Confirm whether J17 is being used for an air blower or a single-speed pump.
- Use the Balboa technical sheet where the original switch positions are missing or unclear.
Important Notes
This board is for GS501SZ control boxes only and is not a universal Balboa PCB.
PCB replacement involves mains voltage components and spa control configuration, so fitting is for an experienced tradesperson, spa engineer or competent individual. Incorrect wiring or setup can damage the board and invalidate warranty cover.
