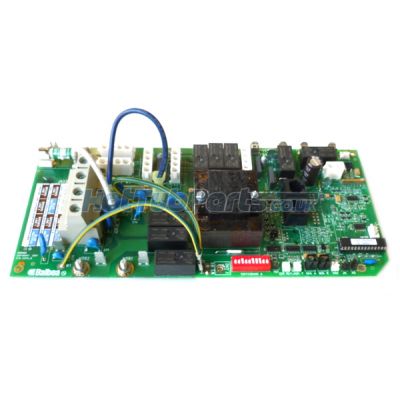

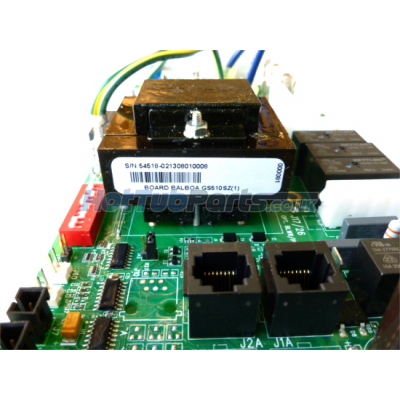

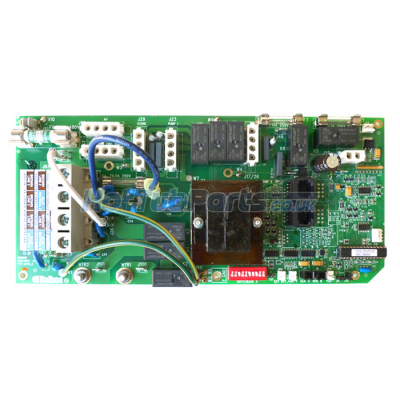

Balboa GS510SZ PCB - 54518 - G1552
The Balboa GS510SZ PCB 54518 - G1552 is designed specifically for use with hot tubs and spas. This replacement circuit board is used in Balboa GS501SZ and GS510SZ control boxes and supports dual pump operation, heater control, ozone, lighting and optional blower output.
Compatible Control Boxes
- Balboa GS501SZ control box
- Balboa GS510SZ control box
- Commonly used in Spaform systems using the correct GS501SZ or GS510SZ spa pack
Compatible Topside Controls
- Balboa VL700S
- Balboa VL701S
- Balboa VL702S
- Serial Standard VL range topside controls
Technical Specifications
- Brand: Balboa
- Model / Series: GS
- Product Type: PCB
- Current Reference: G1552
- Replaces Part Numbers: 54515, 54516, 54650, 54517, 54518, 53642
- Input Voltage: 230V
- Frequency: 50Hz
- Pump 1: Single or dual-speed, with circulation pump if required
- Pump 2: Single-speed
- J17 Port: Air blower or single-speed pump, 10A fuse protection
- Outputs: Heater, ozone and 12V light
- Dimensions: 280 mm x 130 mm
Fitting Guide
This PCB is intended as a replacement board for an existing GS501SZ or GS510SZ control box with a confirmed board fault. It provides control for Pump 1, Pump 2, optional circulation setup, optional blower or single-speed pump through J17, heater, ozone and 12V lighting.
Before removal, record the existing plug positions, wiring layout and switch configuration from the old board. The replacement board may need to be set to match the connected spa equipment and the Serial Standard VL topside panel fitted to the system.
Dipswitch Settings
DIP switches set the board configuration for the pump layout, circulation arrangement and connected outputs. The original board settings are often the best starting point when the previous installation was correct and the spa equipment has not been changed.
- Match the settings to the GS501SZ or GS510SZ control box configuration.
- Check the setup for Pump 1, Pump 2 and any circulation pump arrangement.
- Confirm whether J17 is being used for an air blower or a single-speed pump.
- Use the Balboa technical sheet where the original switch positions are missing or unclear.
Important Notes
This board is for GS501SZ and GS510SZ control boxes only and is not a universal Balboa PCB. It is the current Balboa G1552 reference and replaces earlier board references 54515, 54516, 54650, 54517, 54518 and 53642.
The GS510SZ uses Serial Standard VL topside controls such as VL700S and VL701S. It is not the same as GS510DZ, which is associated with Deluxe VL panels. PCB replacement involves mains voltage components and spa control configuration, so fitting is for an experienced tradesperson, spa engineer or competent individual. Incorrect wiring or setup can damage the board and invalidate warranty cover.
