Balboa GS501Z PCB - 54512 - G1551

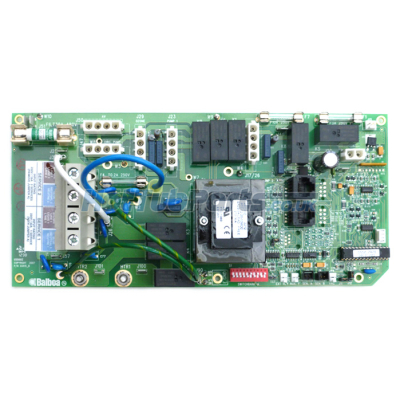

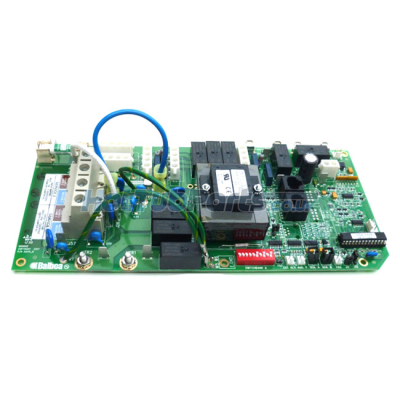

The Balboa GS501Z PCB 54512 - G1551 is designed specifically for use with hot tubs and spas. This replacement circuit board is used in Balboa GS500Z and GS501Z Spa control boxes and is the current Balboa reference for several earlier GS500Z and GS501Z PCB part numbers.
THIS PCB HAS BEEN DISCONTINUED BY BALBOA. When the stock runs out, you will need to upgrade to a full BP control system. Contact us for help.
Compatible Control Boxes
- Balboa GS500Z control box
- Balboa GS501Z control box
- Great Lakes GGS501 CE 53556, box code 53555-01
Compatible Topside Controls
- Balboa VL200
- Balboa VL240
- Balboa VL40* range
- Balboa VL404
- Balboa MVP260
- Duplex VL range panels
Technical Specifications
- Brand: Balboa
- Model / Series: GS
- Product Type: PCB
- Current Reference: G1551
- Replaces Part Numbers: 54523, 54509, 54510, 54511, 54512, 55514
- Input Voltage: 230V
- Frequency: 50Hz
- Pump 1: Single or dual-speed, with circulation pump if required
- J17 Port: Air blower or single-speed pump, 10A fuse protection
- Outputs: Heater, ozone and 12V light
- Sensors: M7 x 2
- Dimensions: 280 mm x 130 mm
Fitting Guide
This PCB is a replacement board for an existing GS500Z or GS501Z spa control box with a confirmed PCB fault. The board controls the main pump circuit, optional circulation pump arrangement, optional blower or single-speed pump through J17, heater, ozone output and 12V lighting.
Before removal, record the existing wiring positions, plug locations and current switch configuration from the old board. The replacement board may require the same mode and switch setup as the failed PCB, depending on the control box, topside panel and fitted spa equipment.
Dipswitch Settings
DIP switch settings are used to configure the board for the equipment fitted to the spa. On many replacements, the safest reference point is the original board, provided the previous setup was correct for the spa.
- Match the switch positions to the spa pack wiring and connected components.
- Use the Balboa technical sheet where the original settings are unknown.
- Check the correct setup for Pump 1, circulation pump use and J17 output.
- Incorrect configuration can cause buttons to operate the wrong components or prevent the spa from running correctly.
Important Notes
This board is for GS500Z and GS501Z control boxes only and must not be fitted into unrelated spa packs or other equipment. It is commonly associated with Spaform, Spaform Esperanto range and Great Lakes systems using the relevant Balboa GS control box.
PCB replacement involves mains voltage components and spa control configuration. Fitting is for an experienced tradesperson, spa engineer or competent individual. Incorrect installation, incorrect wiring or incorrect configuration can damage the board and invalidate warranty cover.
