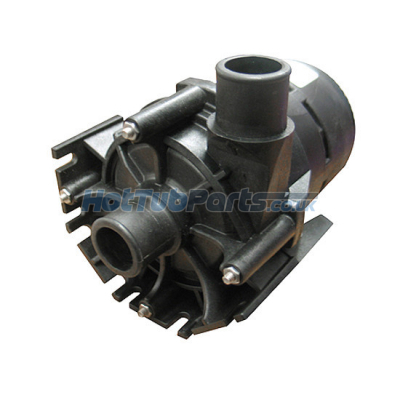

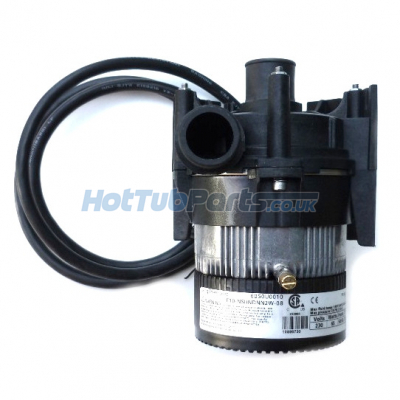

Laing E10 Circulation Pump - 1" Smooth Barb

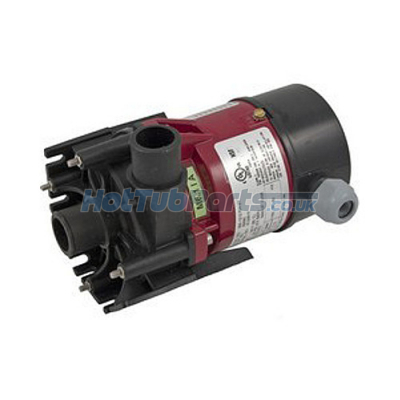

Modern replacement Laing E10 fixed speed circulation pump with 1 inch barbed plumbing connections. The Laing E10 is designed specifically for use with hot tub and spas, this newer black and silver model replaces the very common red model (shown in pic3) that was discontinued many years ago. This replacement is far superior as offers greater flow and uses 40% less power than the old tired red bodied model. It benefits from having a redesigned impeller that clogs less and does not get constantly jammed like the old model.
The Laing E10 is used on many spa brands and spa models that use what we call a low flow heating system. The 1-inch E10 model can be found on Saratoga Spas, Spring spas, Sundance, Jacuzzi, Canadian Spas, Artesian, and others.
Replaces all previous part numbers, SM1212NHW-211, SM1212NHW-191, L6973, L6974, 9338-31 and more.
Laing E10 Pump Overview
- This small Laing E10 circulation pump has a single low-speed motor that is designed to run 24 hours a day, 7 days a week. Very low powered and economical indeed.
- Laing E10 pump 1-inch smooth barb wet end connects to 1" clear or white vinyl pipe and connection seal is aided with a metal pipe clamp. To obtain the best seal simply heat up the ends of the vinyl pipe and fit onto the 1" barbed connections while they are still warm then add the pipe clamps.
- Wet end can be rotated in a choice four positions to suit the plumbing on your spa. This is done by removing the four Allen key bolts that hold the wet end and motor together.
- Wiring - This complete Laing E10 circulation pump is supplied with a new cable and AMP plug but you may need to swap over from your old existing pump if this is different. You will have three wires, live for the high speed (Brown or Black). Neutral (Blue or White) and Earth (Green). If you need a new cable for your new pump then see related products.
- Manufacturer - Laing Thermotech
- Part Number - E10-NSHNDNN2W-08 (replaces many others)
- Model - E10 1 inch fixed speed
- Type of Product - Hot Tub / Spa Pump
- Number of Speeds - 1 (low speed)
- Horse Power - Motor 1/20HP
- Amps Low/High - 0.53
- RPM Low/High - 3200
- Volts/Hz - 230/50
- Dimensions (MM) - Length: 155, Height: 125, Width: 105
We Are Here To Help!
It can be a bit confusing choosing your new pump as models are not always written on them. The quickest way is to simply send us some images of your spas Laing circulation pump you are replacing though our Contact us page and let us do the work for you.
