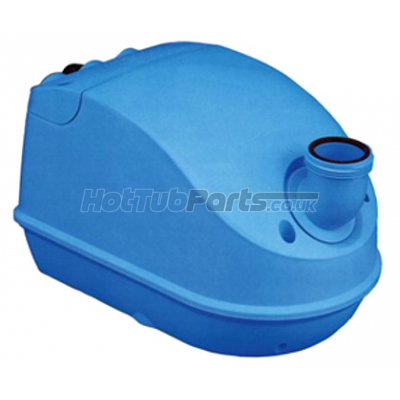

Genesis Bath Air Blower G70-2VH-S
The Genesis Bath Air Blower G70-2VH-S is designed specifically for use with Whirlpool and Jetted baths. This variable-speed heated air blower uses a 700W motor with an integrated 250W heater for a total output of 950W, making it suitable for systems where warm air delivery and adjustable bubble intensity are required. It also uses an internal PCB for operation with a Genesis touchpad control panel, sold separately.
Key Features
- The variable-speed control system is built into the blower via an internal PCB, allowing bubble intensity adjustment and pulsating massage functions when connected to a compatible Genesis touchpad.
- The integrated 250W heater warms the airflow before it reaches the spa, helping to avoid cold air bursts during operation.
- The blower outlet uses a 1.5" BSP male threaded connection and is supplied with a 32mm rotatable union to help with pipe alignment during installation.
- A standard replaceable 3-core cable is fitted for the electrical connection, with 230VAC 50Hz supply and a running current of 4.1 Amps.
- An automatic air system dry-out function helps clear residual moisture from the pipework after use.
- The blue polypropylene housing is rigid, water-resistant and rated to IPX5 for use in spa environments.
- This model is commonly used on Jetted and Whirlpool baths.
Blower Specifications
- Product Type: Air Blower
- Brand: Genesis
- Manufacturer: Balboa Water Group / HydroAir
- Model: G70-2VH-S
- Alternative Part Numbers: GB70-2VH-S, GA70-2VH
- Motor Power: 700W
- Heater Power: 250W
- Total Power Output: 950W
- Voltage: 230VAC
- Frequency: 50Hz
- Current Draw: 4.1 Amps
- Horsepower: 1.21 HP
- Connection Type: 1.5" BSP Threaded Male
- Union Size: 32mm Included
- Dimensions: 280mm x 190mm x 180mm
Fitting Guide
If replacing a like-for-like Genesis Bath Air Blower G70-2VH-S, switch off power to the spa first, remove the power cable from the spa control box, unthread the air outlet pipe connection, remove the fixings securing the blower in place, and fit the replacement in reverse order. For new installations, mount the blower in a well-ventilated area protected from flooding and secure it through the rubber mounting feet. The maximum recommended distance from the blower to the spa is 5 metres. The air line should include either a double air loop and check valve, or two check valves, positioned above the maximum water level. This variable-speed model requires a separate Genesis touchpad to access its control functions, and the built-in heater and motor both include thermal protection for safety.
