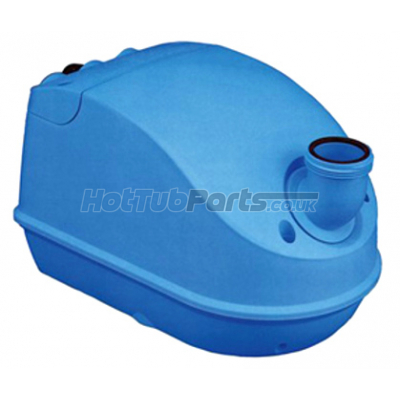

Genesis Bath Air Blower G50-2NN-S

Genesis Bath Air Blower G50-2NN-S

This Genesis Bath Air Blower G50-2NN-S is a compact 500W air blower commonly fitted to hot tubs, spas, whirlpool baths, smaller spa systems and bespoke hydrotherapy installations, with electronic on/off control for use with a compatible spa pack, relay or touchpad. The G50-2NN-S is also widely used as a replacement blower in systems from brands such as Airbath International, where a like-for-like 500W unit with a 1.5" BSP outlet is required.

Key Features

• The 500W motor delivers approximately 0.6 HP output, giving steady airflow for bubble systems in baths and compact hot tubs without the excess size of a larger blower.
• The outlet uses a 1.5" BSP threaded male connection and is supplied with a 32mm union, making pipe connection straightforward where this fitting size is already in place.
• A standard replaceable 3-core cable is fitted, which helps when matching the blower to an existing electrical connection during service work.
• The NN control version is intended for electronic on/off operation through a spa control system, touchpad or relay rather than a built-in pneumatic switch.
• An automatic air-line dry-out function runs after shut-down to help clear residual moisture from the pipework.
• Built-in thermal protection cuts the motor out if it overheats and allows reset once cooled to room temperature.
• The blue polypropylene housing is rigid and moisture-resistant, with an IPX5 rating suited to humid spa and bath equipment areas.
• The compact body size helps when fitting below bath panels or into smaller plant spaces.
• Suitable for whirlpool baths, small hot tubs and custom hydrotherapy systems where a compact 230V blower is specified.
• Often used as a replacement for G50-2NN-S, HydroAir G50-2NN-S and GB50-2NN-S units with matching control and pipe connections.

Blower Specifications

• Product Type: Air Blower
• Brand: Genesis
• Manufacturer: Balboa Water Group / HydroAir
• Model / MPN: G50-2NN-S
• Alternative Part Numbers: HydroAir G50-2NN-S, GB50-2NN-S
• Power Output: 500W
• Horsepower: 0.6 HP
• Voltage: 230VAC
• Frequency: 50Hz
• Current Draw: 2.2 Amps
• Control Type: Electronic On/Off (NN)
• Heating Element: Non-Heated
• Connection Type: 1.5" BSP Threaded Male
• Union Fitting: 32mm Included
• Dimensions: 280mm x 190mm x 180mm

Fitting Guide

If replacing a like-for-like Genesis Bath Air Blower G50-2NN-S, switch the spa power off first, remove the power cable from the spa control box, unthread the air outlet pipe connection, remove the fixings securing the blower in place, and install the new unit in reverse order.

For new installations, this blower should be mounted in a dry, ventilated position protected from flooding and secured through its rubber mounting feet. The air outlet should be connected to correctly supported pipework (The Blower is supplied with a 32mm union so If a 1" connection is required, this willl need to be purchased seperately), the air line should include either a double air loop and check valve, or two check valves, installed above the maximum water level. The NN version requires a separate control system to operate and does not include a built-in air switch or internal heater. Typical wiring supply is 230VAC 50Hz with a 3-core connection. If servicing is needed, the intake filter can be accessed by removing the two screws at the rear of the blower.
