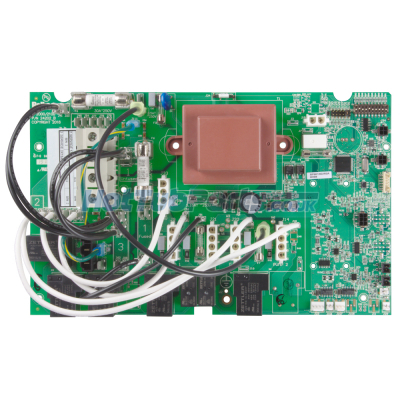

Balboa BP6013G1 CZM8 PCB - 59147
The Balboa BP6013G1 CZM8 PCB 59147 is designed specifically for use with hot tubs and spas. This replacement circuit board is for Balboa BP600 and BP601 Spa control boxes, with support for pump control, heater output, ozone, 10V lighting, A/V connection, optional Wi-Fi output and compatible TP topside panels.
THIS PCB HAS BEEN DISCONTINUED, PLEASE USE BALBOA BP8 PCB AS A REPLACEMENT.
Compatible Control Boxes
- Balboa BP600 and BP601 control boxes
- Existing BP600/BP601 systems using the matching CZM8 board layout
Compatible Topside Controls
- Balboa TP800, TP600, TP400 Serial Standard topside controls
Technical Specifications
- Brand: Balboa
- Model / Series: BP6013G1 CZM8
- Product Type: PCB
- Manufacturer Code: 59147-02
- Input Voltage: 230V
- Frequency: 50Hz
- Pump 1: Dual-speed or single-speed with circulation pump
- Pump 2 or Blower: Single-speed
- Heater Output: 1 x 3kW
- Ozone Output: 1 x ozone output
- Light Output: 1 x 10V light, 1 amp max
- Additional Connection: Radio, TV or A/V connection point
Fitting Guide
This PCB is intended for replacing a failed board inside a compatible Balboa BP600 or BP601 spa control box. It manages the main pump arrangement, circulation pump where fitted, single-speed Pump 2 or blower output, 3kW heater, ozone, lighting and the connected TP series topside control.
The existing board reference, wiring positions, topside plug, pump setup, heater wiring, ozone connection and lighting connection are the main points to record before removing the old PCB.
Dipswitch Settings
DIP switch or setup configuration controls how the board operates with the fitted pump, circulation pump, blower and connected topside. The original board settings are normally the clearest reference where the spa was previously operating correctly.
- Turn S1 switch ON to enter the system into Test Mode.
- Refer to the specific tech sheet on how to navigate through your topside control panel menu to access and change the software setup number.
- Confirm the correct software setup for the fitted pumps, circulation pump and accessories.
- Select the required configuration setup number and confirm, switch power off and switch S1 OFF.
- Check service/amperage configuration against the spa supply and connected load.
Tech Sheet Download
Important Notes
This PCB is for existing Balboa BP600 and BP601 control boxes only and is not a universal replacement board. Balboa has discontinued this PCB, so the replacement path may involve changing to a suitable BP8 board or pack arrangement depending on the spa setup.
PCB replacement involves mains voltage components, heater wiring and spa control configuration. Fitting is for an experienced tradesperson, spa engineer or competent individual. Incorrect board selection, incorrect wiring or incorrect setup can damage the PCB and invalidate warranty cover.
