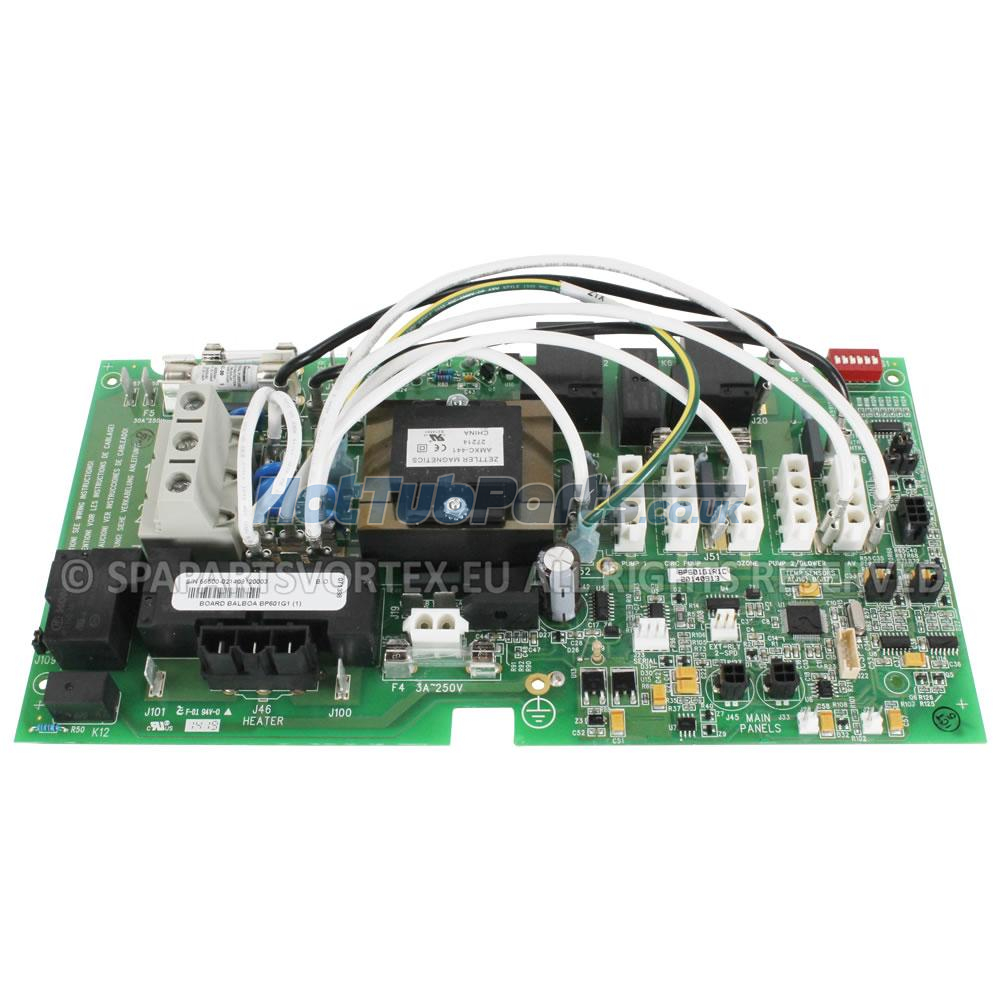

BALBOA BP601G1 PCB - 59104
The BALBOA BP601G1 PCB 59104 is designed specifically for use with hot tubs and spas. This replacement circuit board is for Balboa BP600 and BP601 control boxes and provides control for circulation pump operation, Pump 1, Pump 2 or blower, 3kW heater, ozone, 10V lighting, A/V connection, optional Wi-Fi output, and compatible TP topside panels.
The latest version of this board has a RED transformer that is bigger than the board with the BLACK transformer. You will need to swap the entire control box in this situation to a BP8. Contact us for help if needed.
Compatible Control Boxes
- Balboa BP600 and BP601 control boxes
Compatible Topside Controls
- Balboa TP400, TP600 and TP800 topside control panels etc
Technical Specifications
- Brand: Balboa
- Model / Series: BP601G1
- Product Type: PCB
- Manufacturer Code: 59104-01
- Input Voltage: 230V
- Frequency: 50Hz
- Circulation Pump: Yes
- Pump 1: Dual or single speed
- Pump 2 or Blower: Single speed
- Heater Output: 1 x 3kW
- AV: Yes
- Wi-Fi: Optional module available
- Dimensions: 280 mm x 170 mm
Fitting Guide
This PCB is intended for replacing a failed board inside a compatible Balboa BP600 or BP601 spa control box. It manages the circulation pump, Pump 1, Pump 2 or blower, 3kW heater, ozone output, 10V light output, A/V connection and the connected TP topside panel.
The existing board reference, wiring positions, topside connection, pump configuration, blower connection, heater wiring, ozone connection and light output are the main points to record before removing the old PCB.
Dipswitch Settings
DIP switch or setup configuration controls how the board operates with the fitted circulation pump, Pump 1, Pump 2 or blower and topside panel. The original board settings are normally the clearest reference where the spa was previously operating correctly.
- Turn S1 switch ON to enter the system into Test Mode.
- Refer to the specific tech sheet on how to navigate through your topside control panel menu to access and change the software setup number.
- Confirm the correct software setup for the fitted pumps, circulation pump and accessories.
- Select the required configuration setup number and confirm, switch power off and switch S1 OFF.
- Check service/amperage configuration against the spa supply and connected load.
Tech Sheet Download
Important Notes
This PCB is for existing Balboa BP600 and BP601 control boxes only and is not a universal replacement board.
PCB replacement involves mains voltage components, heater wiring and spa control configuration. Fitting is for an experienced tradesperson, spa engineer or competent individual. Incorrect board selection, incorrect wiring, static damage or incorrect setup can damage the PCB and invalidate warranty cover.
