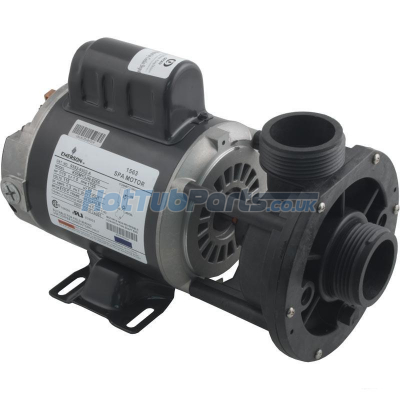

Aqua-flo Circ-Master CP Pump - Centre Discharge
Genuine replacement Aqua-flo Circ-Master CP circulation pump designed specifically for use with Hot Tubs and Spas. The Circ-Master CP is comprised of an Aqua-flo wet end bolted onto a USA Emerson motor.
In our opinion the Circ-Master is one of the best circulation pumps ever made, it delivers a large amount of water flow from its powerful 2hp rated wet end but only runs on 0.6 amps! Very reliable, ultra quiet and long-lasting, we would always recommend fitting one of these circulation pumps if a Chinese model fails in your spa as they are simply brilliant.
This exact centre discharge Aqua-flo Circ-Master HP can be found on some USA manufactured hot tubs & spas such as Sunrise Spa, Master Spas, Down East, Spaform, Aegean and Gulf Coast Spas.
Centre Discharge (Less Common) - This means that the inlet and outlet plumbing union connections are in line with each other. We also sell the more common Circ-Master HP version which has a Side Discharge wet end, see related products if you need this pump instead.
Note: This pump is now fitted with a blue coloured wet end, it was black. Please be assured the pump is still exactly the same.
Circ-Master CP Pump Overview
- This circulation pump has a single low-speed motor that is designed to run 24 hours a day, 7 days a week. Very low powered and economical indeed.
- Circ-Master CP pump wet end connects to 1.5-inch plumbing unions on the inlet and outlet. Both connections have a 63mm outside thread diameter and new O'rings are included to seal the plumbing union connections.
- Wet end can be rotated from the standard 12 O'clock position to 3 O'clock or 9 O'clock position easily by removing the four bolts from the rear of the Emerson motor. These bolts run through the inside of the motor and attach to the wet end.
- Wiring - This complete Aqua-flo Circ-Master CP circulation pump is supplied with a new cable and AMP plug but you may need to swap over from your old existing pump if this is different. You will have three wires, live for the high speed (Brown or Black). Neutral (Blue or White) and Earth (Green). If you need a new cable for your new pump then see related products.
Pump Specifications
- Manufacturer - Aqua-flo (Gecko)
- Part Number - 02593001-2001
- Model - Circ-Master CP (CMCP)
- Type of Product - Hot Tub / Spa Pump
- Number of Speeds - 1 (low speed)
- Motor & Wet End Frame Size - 48 Frame
- Horse Power - Motor 1/15HP, 2HP rated wet end
- Amps Low/High - 0.63
- RPM Low/High - 1425
- Volts/Hz - 230/50
- Dimensions (MM) - Length: 330, Height: 210, Width: 175
