Aqua-flo Circ-Master HP Pump

65 item(s)
HTP2658
£307.76
(£256.47 Ex. VAT)
+

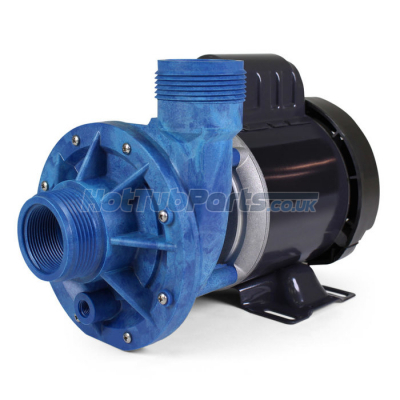

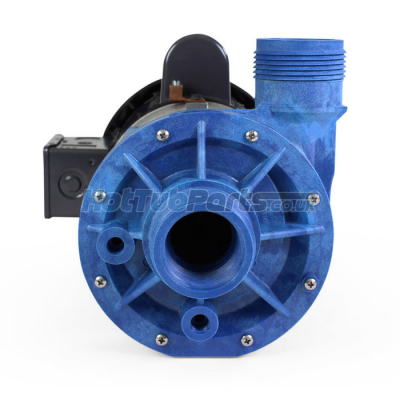

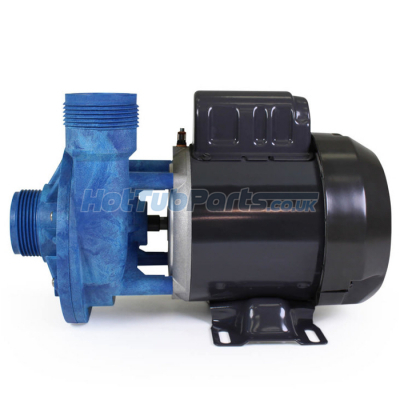

Aqua-flo Circ-Master HP Pump - Side Discharge

Genuine replacement Aqua-flo Circ-Master HP circulation pump designed specifically for use with Hot Tubs and Spas. The Circ-Master HP is comprised of an Aqua-flo wet end bolted onto a USA Emerson motor, it is by far the most common Aqua-flo circulation pump manufactured and can be found fitted to thousands of USA spa brands.

In our opinion this is one of the best pumps ever made, it delivers a large amount of water flow from its powerful 2hp rated wet end but only runs on 0.6 amps! Very reliable, ultra quiet and long-lasting, we would always recommend fitting one of these circulation pumps if a Chinese model fails in your spa as they are simply brilliant.

This exact side discharge Aqua-flo Circ-Master HP can be found on the following spa brands, Master Spas, Aegean, Hot Tubs Direct, Spaform, Hydrospa, Beachcomber (Hush Pump), Leisurerite, Sunrise Spas, Gulf Coast and many more. Replacement for K55MYGRD-8367 and some other old part numbers.

Side Discharge - This means that the inlet and outlet plumbing union connections are offset from each other. We also sell the less common CMCP version which has a Centre Discharge wet end, see related products if you need this pump instead.

Note: This pump is now fitted with a blue coloured wet end, it was black. Please be assured the pump is still exactly the same.

Circ-Master HP Pump Overview

  • This circulation pump has a single low-speed motor that is designed to run 24 hours a day, 7 days a week. Very low powered and economical indeed.
  • Circ-Master HP pump wet end connects to 1.5-inch plumbing unions on the inlet and outlet. Both connections have a 63mm outside thread diameter and new O'rings are included to seal the plumbing union connections.
  • Wet end can be rotated from the standard 12 O'clock position to 3 O'clock or 9 O'clock position easily by removing the four bolts from the rear of the Emerson motor. These bolts run through the inside of the motor and attach to the wet end.
  • Wiring - This complete Aqua-flo Circ-Master HP circulation pump is supplied with a new cable and AMP plug but you may need to swap over from your old existing pump if this is different. You will have three wires, live for the high speed (Brown or Black). Neutral (Blue or White) and Earth (Green). If you need a new cable for your new pump then see related products.

Pump Specifications

  • Manufacturer - Aqua-flo (Gecko)
  • Part Number - 02415001-2010
  • Model - Circ-Master HP (CMHP)
  • Type of Product - Hot Tub / Spa Pump
  • Number of Speeds - 1 (low speed)
  • Motor & Wet End Frame Size - 48 Frame
  • Horse Power - Motor 1/15HP, 2HP rated wet end
  • Amps Low/High - 0.63
  • RPM Low/High - 1425
  • Volts/Hz - 230/50
  • Dimensions (MM) - Length: 330, Height: 210, Width: 175

We Are Here To Help!

It can be a bit confusing choosing your new pump as models are not always written on them. The quickest way is to simply send us some images of the Aqua-flo circulation pump you are replacing though our Contact us page and let us do the work for you.

Manufacturer:
Aqua-flo
Product Type:
Hot Tub Circulation Pump
Part Number(s):
02415001-2010
Frame Size:
48
No. of Speeds:
1 Speed
Motor HP:
1/15
Wet End HP:
2HP
Union Connection:
1.5" x 1.5" (63mm Thread OD)
Amps Low/High:
0.63
RPM Low/High:
1425
Volts/Hz:
230V/50Hz
Length (MM):
330
Width (MM):
175
Height (MM):
210
