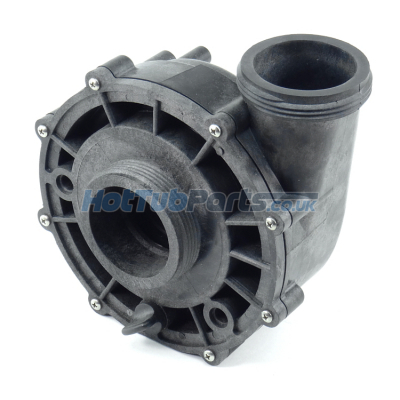

3hp 56 Frame (6.1") Aqua-flo XP2e Wet End
Genuine replacement 56 Frame (6.1") Aqua-flo XP2e wet end with 3hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. This XP2e wet end only fits older discontinued 56 Frame (6.1") pump motors.
The best way to identify this wet end model is they have a part number of 92770715 stamped into one of the four support legs on the rear of the wet end.(shown in pic 2)
This wet end can be found on Aqua-flo pumps with old EMG motors fitted to Tiger River Spas and Hotspring Spas.
This complete Aqua-flo XP2e wet end includes the following items:
- Impeller - 3hp
- Faceplate with air bleed screw
- Housing (Rear Volute)
- Ceramic mechanical shaft seal
- All associated internal O' Rings
Pump Wet End Overview
- Wet End Rotation - All pump wet ends can be installed onto pump motors in three positions, 12 O'clock, 3 O'clock or 9 O'clock easily so that they can attach to your spas plumbing unions.
- Side Discharge - This means the inlet (suction) and outlet (Discharge) are offset from one another. When you look directly at the face of the wet end you will see that the outlet is positioned off to one side in comparison to the inlet and not directly in-line.
- Fitment - Wet end is attached to the motor by four small 5/16" bolts. Sold separately.
- This type of 6.1" 56 frame XP2e wet end only fits Aqua- flo pumps with the older 56 frame smooth body USA motors and some older Italian EMG motors. They will not fit on modern 56 frame (6.3") motors as the four motor mounting legs are not spread apart enough to allow it bolt on.
Pump Wet End Specifications
- Manufacturer - Aqua-flo by Gecko
- Part Number - 91041624-000
- Type of Product - Spa Pump Wet End
- Wet End Frame Size - 56 Frame (6.1")
- Wet End Type - Side Discharge
- Wet End Horse Power - 3HP
- Union Size (Inlet) - 2 inches (78mm Thread OD)
- Union Size (Outlet) - 2 inches (78mm Thread OD)
- Dimensions (MM) - Height: 285, Width: 185, Length: 140
How do I know if my hot tub pump has a 48 Frame or 56 Frame Wet end?
Firstly dismantle your old hot tub pump by removing the four bolts that attach the wet end to the motor. At the rear of the motor, you will have the rear end of the motor shaft that runs all the way through the motor and threads onto the impeller inside the wet end. This shaft end will have a large flat slot for a screwdriver to go onto, simply get another screwdriver and trap the impeller inside the wet end and then unthread the motor shaft from the impeller. You will now have the wet end removed from the motor and you can work out if you have a 48 frame or 56 frame wet end.
48 Frame Wet Ends
There is only one type of 48 frame sized wet end and they will fit all 48 frame pump motors from EMG, Franklin Electric, US Motors, Century Laser, AO Smith and more. Measure diagonally the centres of two of the four bolt studs that attached the motor to the wet end, this measurement will be 130mm.
56 Frame Wet Ends - 6.3"
The modern 6.3" 56 frame motors will fit all modern day 56 frame pump motors. You will very rarely find a smooth bodied 56 frame USA motor fitted on spas in Europe so it will be more likely be an Italian EMG or EME motor associated with a Waterway pump or Aqua-flo Pump. Measure diagonally the centres of two of the four bolt holes that attached the motor to the wet end, this measurement will be 147mm.
56 Frame Wet Ends - 6.1"

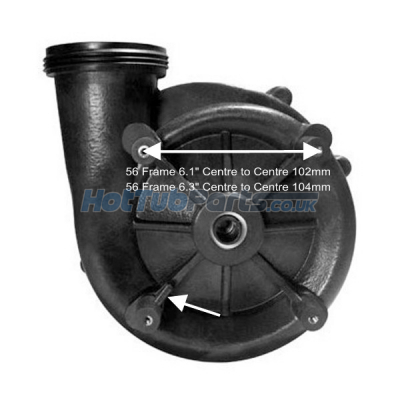

These 56 frame 6.1" wet ends also known as (Euro Legs) are an old size now and the motors are no longer manufactured, you will need to replace your complete hot tub pump really if your motor is showing signs of age and wear. These wet ends are NOT measured diagonally, they are measured side to side and the centres of two bolt holes that attached the motor to the wet end are 102mm. The 6.1" XP2 wet ends can be easily identified as they have a part number of 92770715 stamped into one of the four support legs on the rear of the wet end.
LX Pump Wet Ends
LX pump wet ends will only fit LX pumps, for example, an LP300/WP300 wet end will only fit an LP300/WP300 LX Hot Tub pump.
We Are Here To Help!
It can be a bit confusing choosing your new pump wet end as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete hot tub pump you need the replacement wet end for through our Contact us page and let us do the work for you.
