2hp Impeller - Aqua-Flo Circ-Master Pumps

4 item(s)
HTP576

£22.36
(Inc VAT)

Manufacturer:Aqua-flo
+

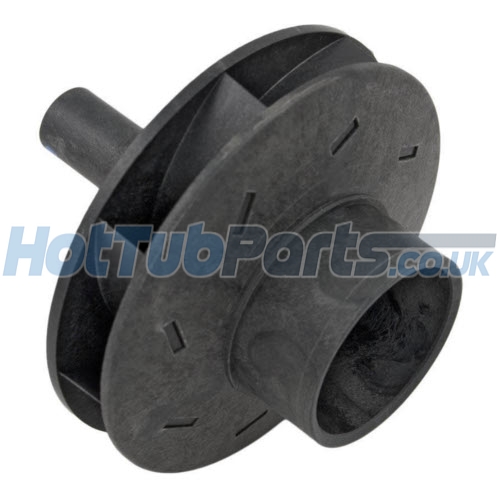

2hp Aqua-flo Circ-Master Pump Impeller

Genuine replacement 2hp impeller for the Aqua-flo Circ-Master circulation pump wet ends designed specifically for use with Hot Tubs & Spas. These 2hp impellers will fit either the Circ-Master HP or Circ-Master CP pump wet ends but you should fit the same horsepower equivalent. The horsepower rating is determined by the Vein Gap Distance.

This type of Aqua-flo Circ-Master Impeller can be identified by having one blue dot marked on the side of the shaft end.

Vein Gap Distance - To aid in matching up the correct impeller HP measure the vein gap distance, this is the distance between the front and rear plates of the impeller. Compare with the specifications of this Aqua-flo impeller below.



Product Specifications

  • Manufacturer - Aqua-flo
  • Part Number - 91693701
  • Type of Product - Pump Wet End Impeller
  • Impeller HP - 2hp
  • Vein Gap Distance - 12mm
  • Intake Outer Diameter  - 40mm
  • Diameter - 90mm
  • Length - 92mm
  • Colour Dot ID - Blue



Top Tips

We recommend if you are replacing the impeller inside your hot tub pump wet end to also replace the shaft seal kit that seals the rear of the impeller shaft to the wet end rear volute. This will avoid having to strip down your pump again to replace this seal kit in the near future. Please see the related products below for a replacement seal kit for your Aqua-flo pump wet end.



We Are Here To Help!

It can be a bit confusing choosing the correct hot tub parts for your hot tub pump as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete hot tub pump you need the replacement parts for through our Contact us page and let us do the work for you.

Manufacturer:
Aqua-flo
Part Number(s):
91693701
Product Type:
Pump Wet End Impeller
Diameter MM:
90mm
Length (MM):
92mm
Outer Intake OD (MM):
40mm
Vein Gap Distance (MM):
12mm
Colour Dot ID:
Blue
