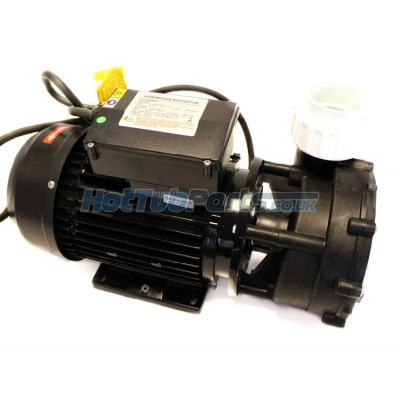

Wellis ACM0594 Spa Pump - 2hp 2 Speed (2"x2")
A complete replacement Wellis ACM0594 Spa Pump. The Wellis ACM0594 pump is simply a rebranded Chinese WP200-II LX pump and so this is the pump that you will receive. It has a 2hp dual speed 56 frame sized motor designed specifically for use with Hot Tubs & Spas.
Our stock of the WP200 LX pump have the latest upgraded ceramic/Viton shaft seal kits within the wet end as previous models suffered from premature seal failure. A few years ago we would have said it would not be worth replacing an American spa pump with a WP200-II LX pump but now they have the upgraded seal kits they are considered to be a good alternative.
Wellis ACM0594 Spa Pump Overview
- This is a 2-speed pump so the high speed is used for JETS or Boost operation when bathing in your Spa or Hot Tub. The low speed is used to heat and filter the spa's water.
- Pump wet end connects to 2-inch plumbing unions on the inlet and outlet. Both connections have a 78mm outside thread diameter and you can use 2 inch flat gaskets to seal the connections.
- Pump wet end can be rotated from the standard 12 O'clock position to 3 O'clock or 9 O'clock position easily by removing the four bolts that attach the wet end to the motor.
- Wiring - This replacement Wellis ACM0594 pump is supplied with a new cable but you may need to swap the cable over from your old existing Wellis pump as control box connection type does vary between spa models. You will have four wires, two of them are live for high and low speeds (Red, Brown or Black) so make a note when installing. Neutral (Blue or White) and Earth (Green). If you need a new cable for your new hot tub pump then see related products.

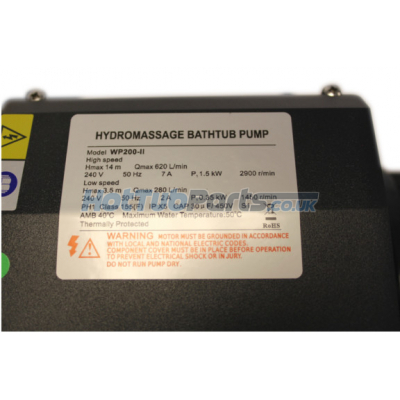

Wellis Spa Pump Specifications
- Manufacturer - LX Pump Co.
- Part Number - Wellis ACM0594
- Type of Product - Hot Tub/Spa Pump
- Number of Speeds - 2 (Low & high speed)
- Motor & Wet End Frame Size - 56 Frame
- Horse Power - Motor 2HP, 2HP rated wet end
- Amps Low/High - 2.0/7.0
- KW Low/High - 0.35/1.5
- RPM Low/High - 1450/2900
- Hz - 50
- Dimensions (MM) - Length: 435, Height: 235, Width: 205
