Wellis ACM0078 Circulation Pump

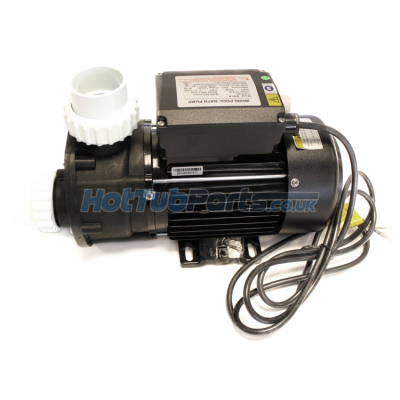

A complete replacement Wellis ACM007 Spa Circulation Pump. The Wellis ACM0078 pump is simply a rebranded Chinese DH1.0 LX pump and so this is the pump that you will receive. The DH models of LX spa circulation pumps can be easily identified and there has only ever been one type of DH1.0 pump manufactured. Our stock of the DH1.0 LX pump have the latest upgraded ceramic/Viton shaft seal kits within the wet end as previous models suffered from premature seal failure.
Centre Discharge - This means that the inlet and outlet plumbing union connections are in-line with each other as opposed to the more common side discharge union connections which are offset from each other.
These circulation pumps can be found on countless hot tubs and spas from Chinese and American spa brands.
Wellis ACM0078 Pump Overview
- This is a 1-speed circulation pump so the single low speed is for the filtration and heating of your spa.
- Pump wet end connects to 1.5-inch plumbing unions on the inlet and outlet. Both connections have a 63mm outside thread diameter and you can use 1.5-inch union O'rings to seal the plumbing union connections.
- Pump wet end can be rotated from the standard 12 O'clock position to 3 O'clock or 9 O'clock position easily by removing the four bolts that attach the wet end to the motor.
- Wiring - This replacement for the Wellis ACM0078 Spa pump is supplied with a new cable but you may need to swap the cable over from your old existing LX pump as control box connection type does vary between spa brands. You will have three wires, live for the single high speed (Brown or Black). Neutral (Blue or White) and Earth (Green). If you need a new cable for your new spa pump then see related products.
- Supplied with an air switch on the electrical box but can disregard if unneeded.
ACM0078 Pump Specifications
- Manufacturer - LX Pump Co.
- Part Number - Wellis ACM0078
- Model - DH Series
- Type of Product - Hot Tub & Spa circulation pump
- Number of Speeds - 1 (low speed)
- Motor & Wet End Frame Size - Unknown
- Horse Power - 1HP
- Amps Low/High - 3.8
- KW Low/High - 0.75
- RPM Low/High - 2900
- Hz - 50
- Dimensions (MM) - Length: 375, Height: 250, Width: 180
We Are Here To Help!
It can be a bit confusing choosing your new replacement pump as models are not always written on them. The quickest way is to simply send us some images of the Wellis ACM0078 circulation pump you are replacing though our Contact us page and let us do the work for you.
