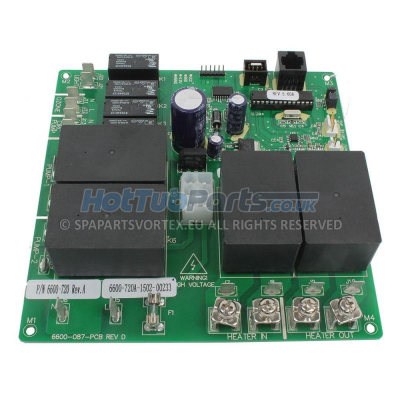

Sundance Spas 680 PCB, Sweetwater Series (2 Pump) - 6600-720
This Sundance Spas 680 PCB, Sweetwater Series (2 Pump) - 6600-720 is designed specifically for use with hot tubs and spas. This replacement circuit board is for selected Sundance 680 Sweetwater Series systems using the matching 2 pump PCB layout.
Compatible Control Boxes
- Sundance 680 Sweetwater Series control systems using the matching 2 pump PCB
- Systems using Sundance PCB code 6600-720
- Systems using replacement board codes 6600-287, 6600-046 or 6600-087
Compatible Topside Controls
Topside compatibility depends on the original Sundance 680 Sweetwater control system fitted to the spa. Check the existing board code, control box label and panel connection style before ordering, as spa model names alone are not always enough to confirm the correct PCB.
Technical Specifications
- Product Type: PCB or Circuit Board
- Manufacturer: Sundance Spas
- Series: 680 Sweetwater Series
- Manufacturer Code: 6600-720
- Replaces: 6600-287, 6600-046 and 6600-087
- Voltage: 230V
- Frequency: 50Hz
- Pump Configuration: 2 Pump
- Application: Sundance 680 Sweetwater Series Spa Systems
Fitting Guide
This PCB is intended as a like-for-like replacement for compatible Sundance 680 Sweetwater Series systems. The old board part number, plug positions, relay layout and wiring locations need to be matched against the replacement board before fitting.
Photograph the existing wiring and note the control box details before removing the old PCB. A board can look similar but still be unsuitable if the software, pump configuration or connection layout differs.
Important Notes
This PCB must only be fitted to compatible Sundance 680 Sweetwater Series systems. It is not a universal Sundance board and must not be installed into any other device, product or spa control system without confirming the correct board code and layout.
Installation should be carried out by an experienced tradesman, competent individual or spa engineer. Incorrect fitting can damage the PCB or connected components and may invalidate the warranty once the board has been installed or powered up.
