Sundance Spa LP200 Pump - 2HP 1 Speed (12 O'clock)

2 item(s)
HTP407-2
£182.88
(£152.40 Ex. VAT)
Manufacturer: Sundance Spas
+

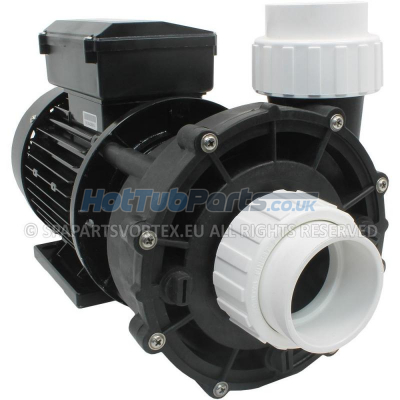

Sundance Spa LP200 Pump - 2hp 1 Speed (12 O'clock)

Complete new Sundance LP200 LX pump with 2hp single speed 48 frame sized motor designed specifically for use with Sundance Hot Tubs & Spas. These LX spa pumps have a unique motor mounting bracket that allows the wet end to be rotated from the standard 12, 3 & 9 o'clock positions to the unique 1:30 & 7:30 o'clock positions found only on Sundance Spas.

This pump is shipped in the 12:00 o'clock position ready for easy & quick installation to your spa or hot tub. Can be found on a range of Sundance spa models including, Marin, Maxxus, Tango & Solo.

Our stock of the Sundance LP200 LX pump has the latest upgraded ceramic/Viton shaft seal kits within the wet end as previous models suffered from premature seal failure.

Sundance LP200 Pump Overview

  • This is a 1-speed pump so the single high speed is used for JETS or Boost operation when bathing in your Spa or Hot Tub.
  • Pump wet end connects to 2-inch plumbing unions on the inlet and outlet. Both connections have a 78mm outside thread diameter and you can use 2 inch flat gaskets to seal the connections.
  • Wiring - This replacement Sundance LP200 LX Spa pump is supplied with a new cable but you may need to swap the cable over from your old existing LX pump as control box connection type does vary between spa brands. You will have three wires, live for the high speed (Red, Brown or Black). Neutral (Blue or White) and Earth (Green). If you need a new cable for your new spa pump then see related products.

Sundance Spa Pump Specifications

  • Manufacturer - LX Pump Co/Sundance Spas/Jacuzzi
  • Part Number - LX-LP200-C
  • Type of Product - Hot Tub/Spa Pump
  • Number of Speeds - 1 (high speed)
  • Motor & Wet End Frame Size - 48 Frame
  • Horse Power - Motor 2HP, 2HP rated wet end
  • Amps Low/High - N/A/7.0
  • KW Low/High - N/A/1.5
  • RPM Low/High - N/A/2900
  • Hz - 50
  • Dimensions (MM) - Length: 400, Height: 205, Width: 205

We Are Here To Help!

It can be a bit confusing choosing your new replacement pump as brand names and models are not always written on them. The quickest way is to simply send us some images of the Sundance Spa pump you are replacing through our Contact us page and let us do the work for you.

Manufacturer:
Sundance Spas
Product Type:
Spa / Hot Tub Pump, Main Water Pump
Part Number(s):
LX-LP200-C, 6500-124
Frame Size:
48
No. of Speeds:
1 Speed
Motor HP:
2HP
Wet End HP:
2HP
Wet End Type:
Side Discharge
Suction Position:
Centre
Union Connection:
2" (78mm Thread OD)
Amps Low/High:
7.0
KW Low/High:
1.5
RPM Low/High:
2900
Volts/Hz:
230V/50Hz
Length (MM):
400
Width (MM):
205
Height (MM):
205
