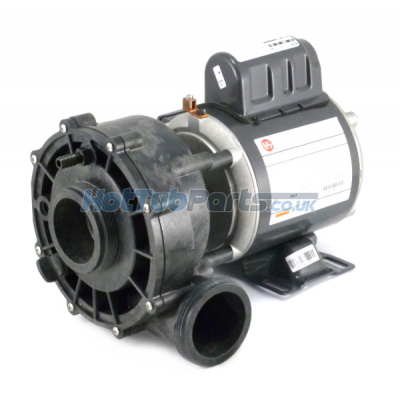

Sundance 880 Jacuzzi Circulation Pump CMXP

Genuine replacement Aqua-flo Circ-Master XP circulation pump specifically used on Sundance 880 Series Spas & Jacuzzi J400 Hot Tubs. This Circ-Master XP has the larger Aqua-flo XP2e wet end with 2" union connections which is bolted onto a US Motor.

Found on Sundance 880 Optima, Ultimar, 2005 Maxxus and many more.

In our opinion the Aqua-flo Circ-Master models are the best circulation pumps ever made, this model delivers a large amount of water flow from its powerful 3hp rated XP2e wet end but only runs on 0.6 amps! Very reliable, ultra quiet and long-lasting.

Direct replacement for K55MYKHF-9557 and some other old part numbers.

Side Discharge - This means that the inlet and outlet plumbing union connections are offset from each other. This model is not to be mistaken for the very common model Circ-Master HP with 1.5-inch plumbing union connections.

Note: This pump is now fitted with a blue coloured wet end, it was black. Please be assured the pump is still exactly the same.

Circ-Master XP Pump Overview

  • This circulation pump has a single low-speed motor that is designed to run 24 hours a day, 7 days a week. Very low powered and economical indeed.
  • Circ-Master CMXP XP2e pump wet end connects to 2-inch plumbing unions on the inlet and outlet. Both connections have a 78mm outside thread diameter and we recommend using 2-inch flat gaskets to seal the union connections.
  • Wet end can be rotated from the standard 12 O'clock position to 3 O'clock or 9 O'clock position easily by removing the four bolts from the rear of the US motor. These bolts run through the inside of the motor and attach to the wet end.
  • Wiring - This complete Sundance 800/Jacuzzi circulation pump is supplied with a new cable and J&J plug but you may need to swap over from your old existing pump if this is different. You will have three wires, live for the high speed (Brown or Black). Neutral (Blue or White) and Earth (Green). If you need a new cable for your new pump then see related products.

Pump Specifications

  • Manufacturer - Aqua-flo (Gecko)
  • Part Number - Sundance/Jacuzzi 6500-911
  • Model - Circ-Master (CMXP)
  • Type of Product - Hot Tub / Spa Pump
  • Number of Speeds - 1 (low speed)
  • Motor & Wet End Frame Size - 48 Frame
  • Horse Power - Motor 1/15HP, 3HP rated wet end
  • Amps Low/High - 0.63
  • RPM Low/High - 1425
  • Volts/Hz - 230/50
  • Dimensions (MM) - Length: 330, Height: 210, Width: 175

We Are Here To Help!

It can be a bit confusing choosing your new pump as models are not always written on them. The quickest way is to simply send us some images of the Sundance or Jacuzzi circulation pump you are replacing though our Contact us page and let us do the work for you.

Manufacturer:
Aqua-flo
Product Type:
Hot Tub Circulation Pump
Part Number(s):
6500-911 or K55MYKHF-9557
Frame Size:
48
No. of Speeds:
1 Speed
Motor HP:
1/15
Wet End HP:
3HP
Union Connection:
2" x 2" (78mm Thread OD)
Amps Low/High:
0.63
RPM Low/High:
1425
Volts/Hz:
230V/50Hz
Length (MM):
330
Width (MM):
175
Height (MM):
210
