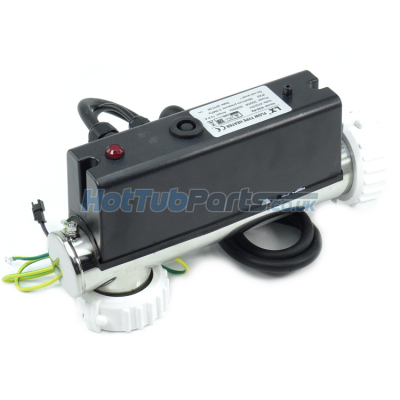

LX H30-R2 3kW Heater 1.5", No P/Switch Cable (L-Shaped)
Genuine replacement Chinese L-shaped LX H30-R2 3.0kW heater assembly without pressure switch cable specifically for use with Hot Tubs & Spas. This LX H30-R2 heater has an L-shaped design with 1.5-inch plumbing union connections that are usually connected directly to the outlet plumbing connection of the spas circulation pump. There is also a straight and Tee shaped version of this heater assembly available.
The following items are included with this complete LX H30-R2 spa heater assembly:
- 2x 1.5-inch heater gaskets
- 2x 1.5-inch plumbing union tailpieces
- 3-core power cord
LX Heater Overview
- This heater can be fitted/wired to Chinese Spa control boxes such as E-Think GD7005, KL8-2 and KL8-3.
- Built-in Hi-Limit thermal safety cut out to prevent overheating.
- The power cable is pre-wired with ring terminals for simple control box PCB installation.
- Can replace Chinese Rooster Heater with some slight plumbing modifications.
- Found on older spa models from brands such as Danz Spas, Spa Serve, Monalisa, Trinity, Cascade Spas & AMC Winer Hot Tubs.
LX Heater Specifications
- Manufacturer - LX
- Part Number - H30-R2
- Type of Product - Spa or Hot Tub heater assembly
- Kilowatt Rating - 3.0kw
- Element Material - Incoloy
- Flow Detection - None
- Sensor Type - Built-in Hi-Limit thermal safety cut out
- Plumbing Union Size - 1.5 inches (63mm thread OD)
- Pipework Connection Size - 1.5 Inch female socket (48mm ID)
- Length Inc Union Tails: 147mm
- Diameter: 50mm
- Height: 150mm
Heater Fitting & Removal Guide
This Chinese LX H30-R2 remote heater is very easy to install. Remove the old one by first turning the power off to the spa and removing the front cover of the main spa control box. Unscrew the power cable connections from the PCB and remove the cable from the control box completely. Go to the heater and either by hand or with an oil filter wrench unthread the heater plumbing union collars either side of the heater assembly. You can remove these collars completely if more access is needed to remove the heater by unscrewing the two screws on each collar. The heater will have a small earth chassis cable going to it so remove this from the heater, no remove the heater completely and reinstall your new replacement in the same order as it was removed. New gaskets are supplied with the new heater so install these into the existing plumbing unions when you reinstall.
We Are Here To Help!
It can be a bit confusing choosing your new spa heater as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete spa heater assembly you need the replacement for through our Contact us page and let us do the work for you.
