LP300 LX Spa Pump - 3hp 1 Speed (2"x2")
Complete Chinese LP300 LX Spa pump with 3hp single speed 48 frame sized motor designed specifically for use with Hot Tubs & Spas. Our stock of the LP300 LX pump have the latest upgraded ceramic/viton shaft seal kits within the wet end as previous models suffered with premature seal failure.
This LP300 LX pump can be used to replace other brands of spa pump such as Waterway, HydroAir and Aqua-flo. The wet ends on these LP300 LX pumps are almost identical to the Aqua-flo XP2e and can be used as a cheaper direct replacement. A few years ago we would have said it would not be worth replacing an American spa pump with a LP300 LX pump but now they have the upgraded seal kits they are a good alternative.
Exact replacement for Wellis Spas Pump ACM0080 as it is this LP300 LX pump rebranded.
LP300 LX Pump Overview
- This is a 1 speed pump so the single high speed is used for JETS or Boost operation when bathing in your Spa or Hot Tub.
- Pump wet end connects to 2 inch plumbing unions on the inlet and outlet. Both connections have a 78mm outside thread diameter and you can use 2 inch flat gaskets to seal the connections.
- Pump wet end can be rotated from the standard 12 O'clock position to 3 O'clock or 9 O'clock position easily by removing the four bolts that attach the wet end to the motor.
- Wiring - This replacement LP300 LX Spa pump is supplied with a new cable but you may need to swap the cable over from your old existing LX pump as control box connection type does vary between spa brands. You will have three wires, live for the high speed (Red, Brown or Black). Neutral (Blue or White) and Earth (Green). If you need a new cable for your new spa pump then see related products.

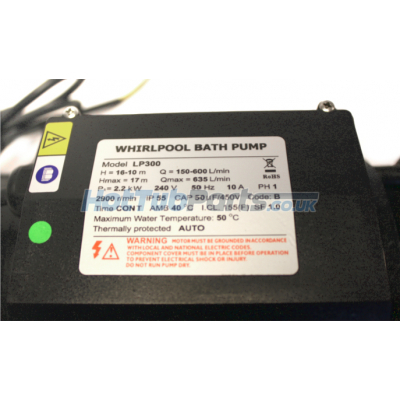

LX Spa Pump Specifications
- Manufacturer - LX Pump Co.
- Part Number - LX-LP300
- Type of Product - Hot Tub/Spa Pump
- Number of Speeds - 1 (high speed)
- Motor & Wet End Frame Size - 48 Frame
- Horse Power - Motor 3HP, 3HP rated wet end
- Amps Low/High - N/A/10.0
- KW Low/High - N/A/2.2
- RPM Low/High - N/A/2900
- Hz - 50
- Dimensions (MM) - Length: 400, Height: 205, Width: 205
We Are Here To Help!
It can be a bit confusing choosing your new replacement pump as brand names and models are not always written on them. The quickest way is to simply send us some images of the LP300 LX Spa pump you are replacing though our Contact us page and let us do the work for you.
Your order will generally be dispatched on the same working day as receipt of payment is received before 2pm. We ship via DPD with tracking.
When you place an order, it's often better to provide us with your mobile telephone number instead of your landline number. This is so we can give it to our courier, who will then text you your exact time and date of delivery, even down to the hour it will be delivered.
Please be aware: All the delivery prices listed below are inclusive of VAT to the UK. All other countries will not be charged VAT. *All spa covers and chemicals can only be shipped to UK mainland, please call for a shipping quote for all other delivery destinations.*
SPA COVERS: Unfortunately due to the size of spa covers and the costs to send them they are not included within the free shipping method over £100. Shipping covers are charged at £24.00 with a 1-2 day service when ready, stock covers due to Covid-19 take around 14 days from order to be shipped, custom covers 10-12 weeks from date of order.
