Laing/Balboa 2.9kW Half Loop Style Low Flow Heater

5 item(s)
HTP525
£265.16
(£220.97 Ex. VAT)
Manufacturer: Balboa Water Group
+

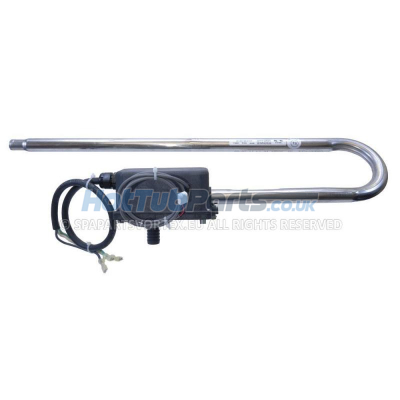

Laing/Balboa 2.9kW Half Loop Style Low Flow Heater

High-quality replacement Half Loop Style Low Flow 2.9kW Balboa/Laing heater 58320 used specifically on Sundance & Jacuzzi Spas, Hotspring/Caldera Spas & Southwest Spas. This 2.9kW half-loop style low flow heater includes a built-in Hi-Limit sensor and cable to connect directly to your spa's control box. These heaters have been manufactured by a few brands such as Therm Products, Laing and Sundance/Jacuzzi over the years and this latest model from Balboa is the direct replacement.



Laing/Balboa Heater Overview

  • This 58320 Balboa/Laing heater can be found on a wide range of spa control systems, replacement for Hotspring/Caldera part number 1076701 and Therm Products part number C3264-2.
  • Water flow through the heater is determined by an external Harwil flow switch normally just after the heater.
  • Internal built-in Hi-Limit sensor with a pre-wired cable to monitor water temperature inside the heater and prevent premature heater failure.
  • 3-Core power cable with spade connectors for easy PCB connection.
  • 3/4" Vinyl pipe Inlet and outlet connections.
  • Found on many spa models from brands such as Sundance & Jacuzzi Spas, Hotspring/Caldera Spas & Southwest Spas.



Laing/Balboa Heater Specifications

  • Manufacturer - Balboa
  • Part Number - 58320
  • Type of Product - Spa or Hot Tub heater assembly
  • Kilowatt Rating - 2.9kW
  • Element Material - Titanium
  • Flow Detection - External flow switch
  • Sensors Type - Built-in Hi-Limit sensor
  • Pipework Connection Size - 25mm for 3/4 Vinyl pipe
  • Length: 675mm
  • Width: 140mm



We Are Here To Help!

It can be a bit confusing choosing your new spa heater as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete spa heater assembly you need the replacement for through our Contact us page and let us do the work for you.

Manufacturer:
Balboa Water Group
Product Type:
Spa & Hot Tub Low Flow Heater Assembly
Part Number(s):
58320
kW Rating:
2.9kW
Element Material:
Titanium
Flow Detection:
External Flow Switch
Sensor Type:
Internal Hi-Limit Sensor
Pipe Connection Size:
3/4" Vinyl Pipe
Length:
675mm
Height:
140mm
