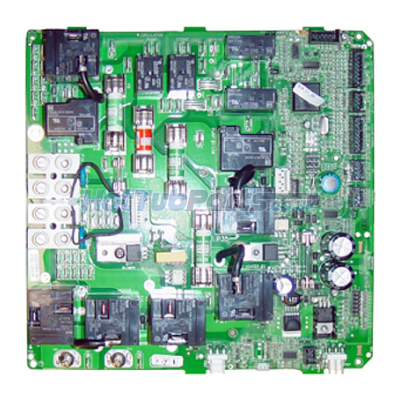

Hydroquip 33-0025A CS-9707 PCB
The Hydroquip 33-0025A CS-9707 PCB is designed specifically for use with hot tubs and spas. This replacement circuit board is used with HydroQuip CS-9707 Export, 9400 Series and CS-9000 Series control systems, including systems fitted with HTII 10-button topside controls.
Compatible Control Boxes
- HydroQuip CS-9707 Export Series control systems
- HydroQuip 9400 Series control systems
- HydroQuip CS-9000 Series control systems
- Sierra Spas using the matching HydroQuip control system
Compatible Topside Controls
- HydroQuip HTII 10-button topside controls
- Other topsides must be matched to the original CS-9000 Series control system specification
Technical Specifications
- Brand: HydroQuip
- Model / Series: CS
- Product Type: PCB
- Board References: 33-0025A, CS-9707
- Replaces Part Numbers: 33-0025-R8, 33-0025A-K, 33-0025A-R8
- Circulation Pump: Optional
- Pump 1: Dual or single speed
- Pump 2: Dual or single speed
- Pump 3: Single speed
- Outputs: Air blower, heater and ozone
- Light Output: 12V, 3-step
- Sensors: Probe style, pressure switch included
Fitting Guide
This PCB is intended for replacing a failed board in a compatible HydroQuip CS-9707, 9400 Series or CS-9000 Series spa control system. It provides control for up to three main pumps, an optional circulation pump, air blower, heater, ozone and 12V 3-step lighting.
The existing part number, wiring positions, probe sensor connections, pressure switch connection, topside plug and pump configuration are the main reference points during replacement. This board uses probe-style sensors and a pressure switch, so it must be matched to the correct HydroQuip system rather than compared with Balboa M7-style boards.
Configuration Settings
Configuration settings control how the board operates with the fitted pumps, circulation pump, blower and topside. The original board setup is normally the clearest reference where the spa was previously configured correctly.
- Match the setup to the CS-9707, 9400 Series or CS-9000 Series control system.
- Confirm whether Pump 1 and Pump 2 are single-speed or dual-speed.
- Check whether Pump 3 and the optional circulation pump are fitted.
- Confirm the pressure switch and probe-style sensor connections before powering the system.
Important Notes
This PCB is for compatible HydroQuip CS-9707 Export, 9400 Series and CS-9000 Series control systems only. It is not a universal spa control board and must not be fitted to incompatible packs or unrelated electrical equipment.
PCB replacement involves mains voltage components, electronic controls and system configuration. Fitting is for an experienced tradesperson, spa engineer or competent individual. Incorrect board selection, incorrect wiring, static damage or incorrect configuration can damage the PCB and invalidate warranty cover.
