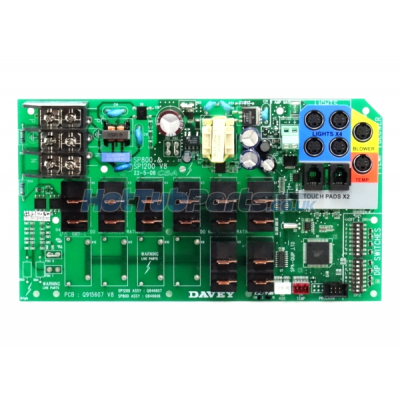

Davey/Spa-Quip Spa Power PCB - SP800
The Davey/Spa-Quip Spa Power PCB SP800 Q846606SP is designed specifically for use with hot tubs and spas. This replacement circuit board is for Davey Spa Power SP800 control boxes and supports configurable pump outputs, circulation pump operation, blower control, heater output, ozonator connection and 12V LED lighting.
Compatible Control Boxes
- Davey Spa Power SP800 control box only
Compatible Topside Controls
- Davey Spa Power (SpaQuip) SP800/SP1200 topside controls, oval or rectangular. Both the SP800 and SP1200 use the same topside control, it's just the overlay that is different.
Technical Specifications
- Brand: Davey / Spa-Quip
- Model / Series: Spa Power SP800
- Product Type: PCB
- Manufacturer Code: Q846606SP
- Input Voltage: 230V AC
- Frequency: 50Hz
- Pump 1: 1 x two-speed pump or 2 x single-speed pumps, P1A and P1B
- Pump 2: 1 x single-speed pump or 1 x single-speed blower
- Circulation Pump: Small 24hr circulation pump
- Air Blower: Single or variable speed
- Other Outputs: Ozonator and 1 x heater
- Dimensions: 230 mm x 120 mm
Fitting Guide
This PCB is intended for replacing a failed board inside a compatible Davey or Spa-Quip SP800 spa control box. It manages the pump configuration, 24hr circulation pump, blower option, heater output, ozonator output, temperature control and 12V lighting functions.
The existing board reference, wiring positions, topside connection, pump setup and blower configuration are the main points to record before removing the old PCB. The SP800 can be configured in different ways, so the replacement board needs to match the equipment fitted to the spa.
Important Notes
This PCB is for Davey/Spa-Quip Spa Power SP800 control boxes only and is not a universal replacement board. Pump 2 can be configured for a single-speed pump or a single-speed blower, but not both at the same time.
PCB replacement involves mains voltage components and spa control configuration. Fitting is for an experienced tradesperson, spa engineer or competent individual. Incorrect board selection, incorrect wiring or incorrect setup can damage the PCB and invalidate warranty cover.
