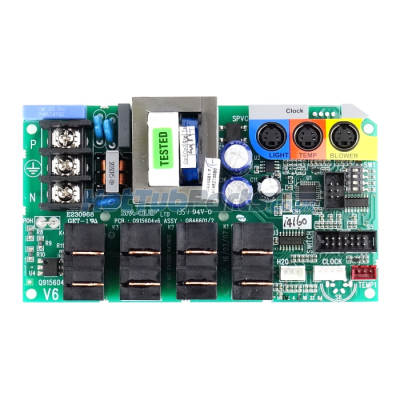

Davey/Spa-Quip Spa Power PCB - SP600/SP601
The Davey/Spa-Quip Spa Power PCB SP600/SP601 - Q846601-10TSP is designed specifically for use with hot tubs and spas. This compact replacement circuit board is for Davey Spa Power SP601 control boxes and supports Pump 1 configuration, conditional Pump 2 use, blower control, heater output, ozonator connection and 12V lighting.
Compatible Control Boxes
- Davey Spa Power SP601 control box only
Compatible Topside Controls
- Davey Spa Power SP601 oval and rectangular topside controls
Technical Specifications
- Brand: Davey / Spa-Quip
- Model / Series: Spa Power SP600 / SP601
- Product Type: PCB
- Manufacturer Code: Q846601-10TSP
- Input Voltage: 230V AC
- Frequency: 50Hz
- Pump 1: Single or dual-speed pump, with circulation pump if required
- Pump 2: Single-speed, only when Pump 1 is single-speed with circulation
- Air Blower: Single or variable speed
- Outputs: Ozonator and 1 x heater
- Light Output: 1 x 12V light
- Dimensions: 145 mm x 80 mm
Fitting Guide
This PCB is intended for replacing a failed board inside a compatible Davey or Spa-Quip SP601 spa control box. It provides the main control for the pump setup, circulation pump arrangement, blower option, heater output, ozonator output and single 12V light output.
The existing board reference, wiring positions, topside connection, pump configuration and blower setup are the main points to record before removing the old PCB. The SP600/SP601 layout is compact, so correct connection placement and matching the original configuration are important during replacement.
Configuration
Configuration settings control how the SP600/SP601 board operates with the fitted pump, optional circulation pump, Pump 2 output and blower. The original board setup is normally the clearest reference where the system was previously working correctly.
- Confirm whether Pump 1 is single-speed or dual-speed.
- Check whether a circulation pump is fitted with Pump 1.
- Confirm Pump 2 use only where Pump 1 is single-speed with circulation.
- Check whether the blower is set for single-speed or variable-speed operation.
Important Notes
This PCB is for Davey/Spa-Quip Spa Power SP601 control boxes only and is not a universal replacement board. Pump 2 is conditional and is only available when Pump 1 is configured as single-speed with a circulation pump.
PCB replacement involves mains voltage components and spa control configuration. Fitting is for an experienced tradesperson, spa engineer or competent individual. Incorrect board selection, incorrect wiring or incorrect setup can damage the PCB and invalidate warranty cover.
