Arctic 3.6kw Straight Tee Heater

3 item(s)
HTP2587
-13%
£245.50
(£204.58 Ex. VAT)
RRP ex VAT: £234.86
Manufacturer:
+

Arctic 3.6kW Straight Tee Heater

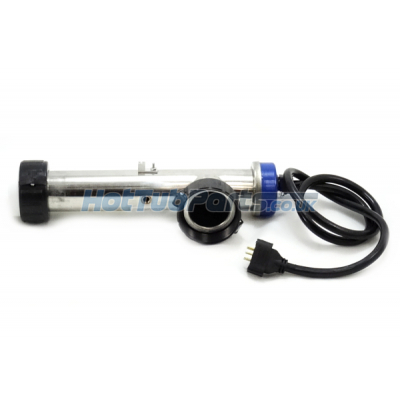

A very distinctive 3.6kw straight tee spa heater assembly A2360-5350ET found on many Arctic models in the past. The original heater assembly (Pic 2) manufactured by RMF/Aquatemp and then by Therm Products was discontinued in 2018. This new direct replacement from HydroQuip is the same length as the original so no plumbing modifications are required to fit this heater to your spa.

NOTE: This new heater does not have the rubber 5-pin J&J plug on the end of the power cord it has pre-wired ring terminals on the end of the cables. Simply run the power cable through into the spa control box and wire directly onto the PCB heater terminal connections. For flow detection a pressure switch is required and NOT supplied with heater, the replacement can be purchased HERE or below in the related products.

The following items are included with this complete straight 3.6kw Arctic heater assembly A2360-5350ET:

  • 2x 2-inch heater gaskets
  • 2x 2-inch split union nut collars
  • 1x 2-inch union tailpiece
  • Pre-wired heater terminals
  • External Hi-Limit sensor pouch



Spa Heater Overview

  • This heater can only be fitted to Arctic/Gecko MSPA MP control boxes.
  • The Hi-Limit sensor is secured within an external pouch on the heater tube.
  • Supplied without pressure switch and is sold separately, this is used to determine how much flow is passing through the heater tube and prevents heater failure.



Spa Heater Specifications

  • Manufacturer - HydroQuip
  • Part Number - A2360-5350ET (replaces others).
  • Type of Product - Spa or Hot Tub heater assembly
  • Kilowatt Rating - 3.6kW
  • Element Material - Incoloy
  • Flow Detection -  Teckmark Pressure switch 3902
  • Sensor Type - Separate Hi-Limit and temperature sensors
  • Plumbing Union Size - 2 inches (78mm thread OD)
  • Pipework Connection Size - 2 Inch female (60mm ID)
  • Length: 350mm
  • Length Inc Unions: 370mm
  • Height Inc Unions: 185mm
  • Tube Internal Diameter: 55mm



We Are Here To Help!

It can be a bit confusing choosing your new spa heater as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete spa heater assembly you need the replacement for through our Contact us page and let us do the work for you.

Manufacturer:
HydroQuip
Product Type:
Spa & Hot Tub Heater Assembly
Part Number(s):
A2360-5350ET
kW Rating:
3.6kW
Element Material:
Incoloy
Flow Detection:
2 PSI Pressure Switch
Sensor Type:
Hi-Limit Sensor in External Pouch
Plumbing Union Size:
2” (78mm thread OD)
Pipe Connection Size:
2” female socket (60mm ID)
Length:
350mm
Length Inc Unions:
370mm
Tube Diameter:
55mm Internal
Compatible With:
Arctic/Gecko MSPA MP spa control systems
