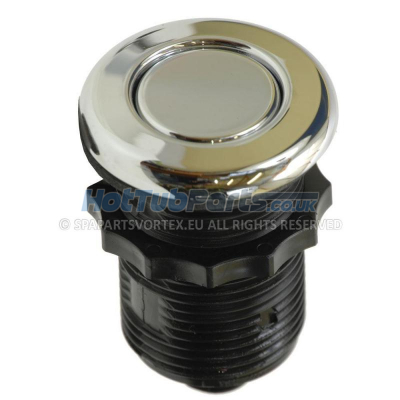

Air Button - Mini, Flat Style, Chrome

Tecmark Air Button - Mini, Flat Style, Chrome

This Tecmark Air Button Mini, Flat Style, Chrome - MPT-57570-3428 is designed specifically for use with jetted whirlpool baths, hot tubs and spas. It is a compact pneumatic air button with a flat chrome face, commonly fitted as a simple on/off control for equipment operated through an air switch system. Suitable for replacement work or new builds where a neat, low-profile button is required, it is used across a wide range of bath and spa installations, including systems found on Jacuzzi-style whirlpool baths and many standard hot tub and spa control layouts.

Key Features

• The mini flat design gives a tidy, unobtrusive finish on the bath or spa shell while still being easy to press in normal use.
• The chrome outer face and stainless steel plate suit both modern whirlpool baths and traditional spa cabinet control positions.
• Designed as a basic pneumatic on/off air button for straightforward control of compatible air switch operated equipment.
• Works effectively over standard air line distances up to 3 metres, making it suitable for many common equipment layouts.
• The 32mm mounting hole size makes it a practical replacement option where the original button matches the same cut-out.
• Commonly fitted to jetted baths, hot tubs and spas as a pump or function start/stop button linked to an air switch.
• Suitable for like-for-like replacement of Tecmark mini flat style air buttons where face size, hole size and air tube connection match.
• Can be used in a wide range of spa and bath systems rather than being limited to one specific make of tub.

Air Button Specifications

• Product Type: Air Transmitter / Air Button
• Manufacturer: Tecmark
• MPN: MPT-57570-3428
• Style: Mini Flat
• Finish: Chrome
• Face Material: Stainless Steel Plate
• Operation: Basic On/Off Function
• Operating Range: Up to 3 Metres
• Face Diameter: 65 mm
• Height: 45 mm
• Fits Hole Size: 32 mm
• Air Connection: 3.2mm Air Tubing

Fitting Guide

If replacing a like-for-like Tecmark Air Button Mini, Flat Style, Chrome or MPT-57570-3428, the main points to check are the 32mm panel hole, the overall 65mm face size and the 3.2mm air tube connection. This style is intended for simple pneumatic switching, so it suits systems already set up with an air hose running from the button to a compatible air switch.

For new installations, this button is typically mounted through a 32mm hole in the bath rim, spa shell or control panel area, with enough rear clearance for its 45mm body depth. The flat profile is useful where a lower, neater finish is preferred. It is generally fitted in positions within easy reach of the user and connected by air tube over distances up to 3 metres to operate the required on/off function.
