3hp 2 Speed Niagara Balboa Spa Pump (2x2)

20 item(s)
HTP1100
-20%
£533.95
(£444.96 Ex. VAT)
RRP ex VAT: £559.41
+

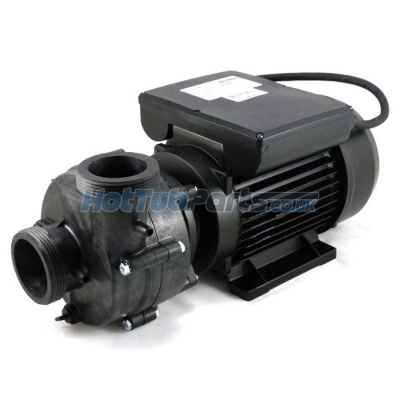

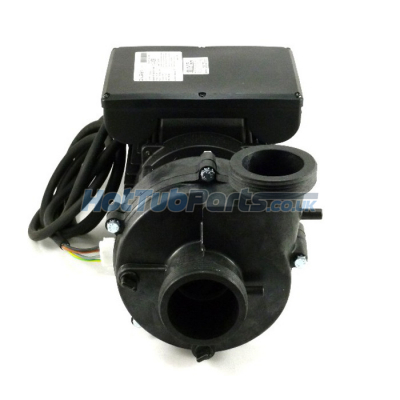

3HP 2 Speed Niagara Balboa Pump

Genuine 3hp 2 speed Balboa Niagara pump designed specifically for use with hot tubs and spas. The Niagara model is a very efficient modern Balboa hot tub pump with excellent power performance and boasts from having a large heavy duty 56 frame sized motor. It can be easily recognised from its motor design and having a saddle bag style electrical box that hangs over each side of the motor with its start capacitors inside.

This 3hp Niagara pump is a replacement for Ultimax pumps by Vico & Sta-RiteSta-Rite Durajet hot tub pump which is commonly found on Dimension One Spas & Master Spas.

Balboa Niagara Pump Overview

  • This is a 2-speed pump so the single high speed is used for JETS or Boost operation when bathing in your Spa or Hot Tub. The low speed is used for the spas heating and water filtration.
  • Pump wet end connects to 2-inch plumbing unions on the inlet and outlet. Both connections have a 78mm outside thread diameter and you can use 2 inch flat gaskets to seal the connections.
  • Pump wet end can be rotated from the standard 12 O'clock position to 3 O'clock or 9 O'clock position easily by removing the four 1/4" bolts that attach the wet end to the motor.
  • Wiring - This replacement Niagara spa pump is supplied with a new cable but you may need to swap over from your old existing pump as spa control connections can vary. You will have four wires, two of them are live for high and low speeds (Red, Brown or Black) so make a note when installing. Neutral (Blue or White) and Earth (Green). If you need a new cable for your new pump then see related products.
  • Includes new plumbing unions, 2x 63mm & 2x 2-inch within the box.

Balboa Spa Pump Specifications

  • Manufacturer - Balboa Water Group
  • Part Number - 1023332
  • Model - Niagara (Ultimax)
  • Type of Product - Hot Tub/Spa Pump
  • Number of Speeds - 2 (high & low speeds)
  • Motor & Wet End Frame Size - 56 Frame
  • Horse Power - Motor 3HP, 3HP wet end
  • Amps Low/High - 2.5/11.5
  • RPM Low/High - 1425/2875
  • Hz - 50
  • Dimensions (MM) - Length: 460, Height: 204, Width (including electrical box): 204

We Are Here To Help!

It can be a bit confusing choosing your new replacement Balboa pump as model details are not always written on them. The quickest way is to simply send us some images of the Balboa Spa pump you are replacing though our Contact us page and let us do the work for you.

Manufacturer:
Balboa Water Group
Product Type:
Spa / Hot Tub Pump, Main Water Pump
Part Number(s):
1023332
Frame Size:
56
No. of Speeds:
2 Speed
Motor HP:
3HP
Wet End HP:
3HP
Union Connection:
2" x 2" (78mm Thread OD)
Amps Low/High:
2.5/11.5
RPM Low/High:
1425/2875
Volts/Hz:
230V/50Hz
Length (MM):
460
Width (MM):
204
Height (MM):
204
