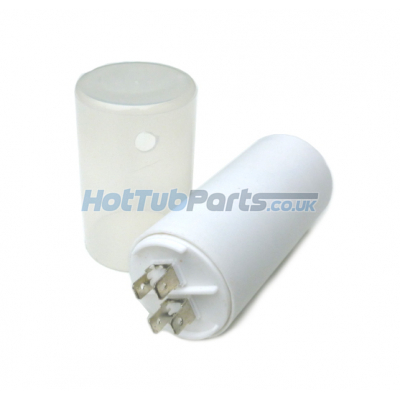

35uF Hot Tub Pump Capacitor
High-quality replacement 35uF start/run capacitor for pump motors used on Hot Tubs & Spas. Our 35uF hot tub pump capacitors are designed to fit the electrical housing on most hot tub pump motors. They include a mounting stud, nut and end cap so they can be mounted externally to the motor if required, these can be also cut off to fit within a limited space.
Connections: These 35uF capacitors have four male spade terminal connections but in most cases, you will only require to use two of them. It does not matter which way round you wire these but make a note that there is a moulded dividing line between a pair of terminals and you will need to attach your two wires either side of this line.
Warning: Please do not attempt to install this capacitor to your pump when the pump is still running as they run at high voltage and can cause an electric shock and possible injury.
- Diameter: 50mm
- Length: 120mm (With End Cap),100mm (No End Cap)
- Volts - 450VAC
- Hz - 50/60
- Rating uF/MFD - 35
We Are Here To Help!
It can be a bit confusing choosing the correct hot tub parts for your hot tub pump as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete hot tub pump you need the replacement parts for through our Contact us page and let us do the work for you.
