Gecko 2kw Flow Thru SSPA Heater (Older Version)

2 item(s)
HTP521
-13%
£223.07
(£185.89 Ex. VAT)
RRP ex VAT: £213.43
Manufacturer: Gecko Alliance
+

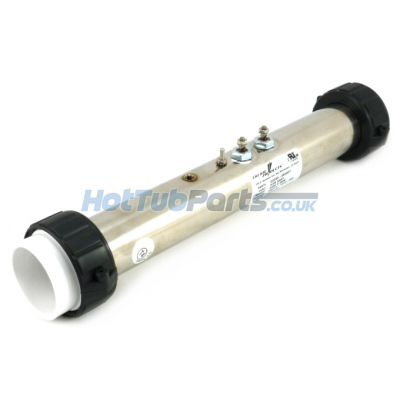

Gecko 2kW Flow Thru SSPA Heater

Official high-quality replacement 2kW Gecko SSPA heater C2200-0800ET used specifically on hot tubs and spas. This particular 2kw heater uses Tecmark 3902 pressure switch (Sold separately) for flow detection and is secured within Gecko SSPA flow-thru metal control boxes with stud mounting. This heater is very common on older spa models and has been manufactured by many brands over the years, Therm Products, RMF, Spa Components & Gecko.

The following items are included with this complete Gecko spa heater assembly:

  • 2x 2-inch heater gaskets
  • 2x 2-inch split union nut collars
  • 2x Mounting stud and 3/8" fixing nut
  • 1x Hi-Limit sensor securing pouch



Gecko Heater Overview

  • Heater can be fitted to Gecko control boxes such as Gecko SSPA.
  • A metal pouch is located on one side to secure the hi-limit temperature probe in place.
  • Supplied without pressure switch is used to determine how much flow is passing through the heater tube and prevents heater failure.
  • Found on older spa models from brands such as Hotspot, LA Spas, Sierra Spas, Southwest Spas, Sunrise Spas, Artesian Spas, Gulf Coast & Coyote Spas.



Heater Specifications

  • Manufacturer - Gecko Alliance
  • Part Number - C2200-0800ET, replaces other older part numbers.
  • Type of Product - Spa or Hot Tub heater assembly
  • Kilowatt Rating - 2kW
  • Element Material - Incoloy
  • Flow Detection - 2 PSI Tecmark pressure switch 3902
  • Sensor Type - Separate Hi-Limit and Temperature
  • Plumbing Union Size - 2 inches (78mm thread OD)
  • Pipework Connection Size - 2 Inch male (78mm OD)
  • Length: 380mm,
  • Length Inc Unions: 495mm
  • Tube Diameter: 60mm
  • Distance of Terminals: 31.75mm



Heater Fitting & Removal Guide

Loosen the two heater union collars by hand or with a wrench and if necessary the collars can be split into two and removed completely by unscrewing the two screws on the collar. Remove the chassis earthing copper cable from the heater tube and the Hi-Limit sensor from the securing pouch. Take the lid off of the SSPA spa control box and disconnect the two spade connectors from the pressure switch. Undo the 2x 3/8 nuts that secure the two power cables onto the heater terminals. Unthread the pressure switch from the heater tube and then undo the 3/8" nuts from the heater to control box mounting studs. Remove the heater completely and reinstall in the same order.

Take care when tightening the two heater power wires onto the new heater terminals, use a 1/4 inch spanner and hold the base of the terminal whilst tightening the 3/8 inch nuts up to prevent the terminals being twisted. New gaskets are supplied with the new heater so replace and fit these to your heater union connections. We advise renewing the pressure switch when installing a new heater, this is is listed in the related products below.



We Are Here To Help!

It can be a bit confusing choosing your new spa heater as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete spa heater assembly you need the replacement for through our Contact us page and let us do the work for you.

Manufacturer:
Gecko Alliance
Product Type:
Spa & Hot Tub Heater Assembly
Part Number(s):
C2200-0800ET
kW Rating:
2.0kW
Element Material:
Incoloy
Flow Detection:
2 PSI Pressure Switch
Sensor Type:
Hi-Limit Sensor in External Pouch
Terminal Distance:
31.75mm
Plumbing Union Size:
2” (78mm thread OD)
Pipe Connection Size:
2” female socket (60mm ID)
Length:
380 mm
Length Inc Unions:
495 mm
Tube Diameter:
60 mm
Compatible With:
Gecko SSPA Spa control boxes only
