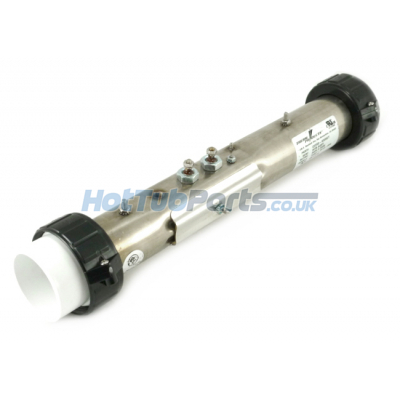

2.5kw HydroQuip Flow Thru "Challenger" Heater
Official high-quality replacement 2.5kW HydroQuip heater C2250-0309ET used specifically on hot tubs and spas. This particular 2.5kw heater uses Tecmark 3902 pressure switch (Sold separately) for flow detection and is secured within HydroQuip blue-faced metal control boxes with twin stud mounting. Not a very common heater but found on Gulf Coast HydroQuip spa control packs. This heater has been manufactured by many brands over the years, Therm Products, RMF, Spa Components & Gecko. This HydroQuip heater is now the direct replacement.
The following items are included with this complete HydroQuip spa heater assembly:
- 2x 2-inch heater union gaskets
- 2x stud mounting and 3/8" fixing nuts
- 1x Hi-Limit sensor securing pouch
HydroQuip Heater Overview
- This heater can be fitted to HydroQuip control boxes from Gulf Coast Spas and others.
- A metal pouch is located on one side to secure the hi-limit temperature probe in place.
- Supplied without pressure switch is used to determine how much flow is passing through the heater tube and prevents heater failure.
- Found on older spa models from brands such as Gulf Coast Spas.
Heater Specifications
- Manufacturer - HydroQuip

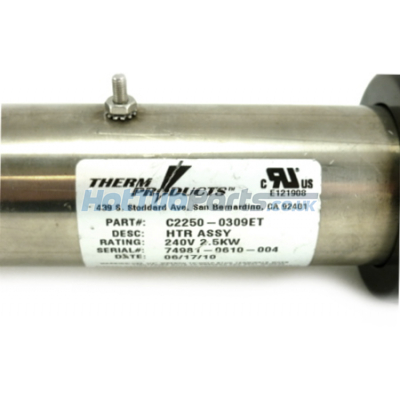

- Part Number - C2250-0309ET
- Type of Product - Spa or Hot Tub heater assembly
- Kilowatt Rating - 2.5kW
- Element Material - Incoloy
- Flow Detection - 2 PSI Tecmark pressure switch 3902
- Sensor Type: Temp & hi-limit
- Plumbing Union Size: 2 inches (78mm thread OD)
- Pipework Connection Size: 2 Inch male (78mm OD)
- Length: 380mm
- Tube Diameter: 60mm
- Distance of Terminals: 31.75mm
Heater Fitting & Removal Guide
Loosen the two heater union collars by hand or with a wrench and if necessary the collars can be split into two and removed completely by unscrewing the two screws on the collar. Remove the chassis earthing copper cable from the heater tube and the Hi-Limit sensor from the securing pouch. take the lid off of the spa control box and disconnect the two spade connectors from the pressure switch. Unthread the pressure switch from the heater tube and then undo the two 3/8" nuts from the heater to control box mounting stud. Remove the heater completely and reinstall in the same order. New gaskets are supplied with the new heater so replace and fit these to your heater union connections. We advise renewing the pressure switch when installing a new heater, this is is listed in the related products below.
We Are Here To Help!
It can be a bit confusing choosing your new spa heater as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete spa heater assembly you need the replacement for through our Contact us page and let us do the work for you.
