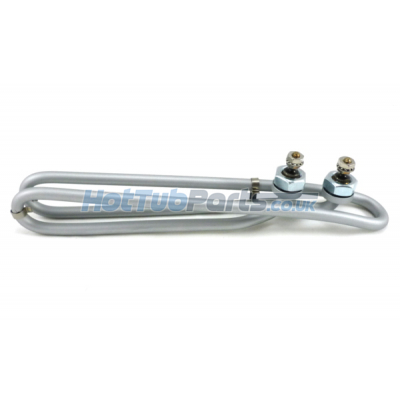

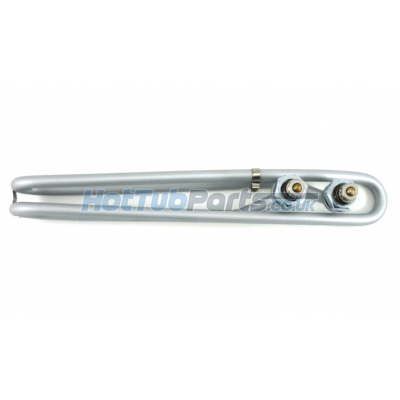

2.0kw Titanium Heating Element
HydroQuip high-quality USA replacement 2.0kW Titanium heating element for use specifically with hot tubs, spas and swim spas. Titanium heater elements are the highest quality you can buy and the longest-lasting on the market compared to other Incoloy and titanium coated elements manufactured.
Spa Heater Element Overview
- This titanium heater element can be used as a replacement for many well-known spa heater assembly manufacturers such as Gecko, Balboa, Spa Builders, HydroQuip, ACC, Therm Products, Aquatemp, RMF, Vita Spas, Cal spa, Jacuzzi and many more.
- Supplied with new Viton element to heater tube O-rings, 2x 19mm element fixing nuts and 2x 3/8 replacement terminal nuts.
- 1-year warranty from date of purchase.
Spa Heater Element Specifications
- Manufacturer: HydroQuip
- Part Number: HTP1379
- Type of Product: Spa or Hot Tub heater element
- Kilowatt Rating: 2.0kW
- Volts/Hz: 230/50
- Amps: 8.0-8.5
- Element Material: Titanium
- Length: 270mm
- Height: 60mm
- Distance of Terminals: 33mm
Element Fitting & Removal Guide
Once you have the heater assembly removed from the spa undo the two 19mm element/tube securing nuts. Push down the two heater terminals and slide out the old element (can be tight but will come out). Slide in the new heater element whilst making sure that you do not bend the terminals too much and ensure the Viton O-rings are seated properly in the recess of each terminal beforehand. Pop up the two terminals through the tube and secure in place with the 2x 19mm nuts.
NOTE: When you have the heater assembly back in the spa control box and you tighten the two heater terminal power wire connections with 3/8 nuts do not allow them to get twisted otherwise the element will be damaged and will not work. Hold the base of the terminal with a 1/4" spanner whilst tightening the 3/8 fixing nuts to prevent this. Element failure from twisted terminals will void any manufacturers warranty. We advise replacing any old pressure switches and heater union gaskets when you fit a new heating element.
We Are Here To Help!
It can be a bit confusing choosing your replacement spa heater element as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete spa heater assembly you need the replacement for through our Contact us page and let us do the work for you.
Your order will generally be dispatched on the same working day, provided payment is received before 2 pm Monday - Friday. We use a few shipping companies such as DPD, EVRI, & DHL to achieve the most cost-effective methods for delivering the different types of products that we stock.
All our shipments are tracked and signed for by our designated shipping companies. If you leave us your mobile telephone number at the payment checkout, we will pass this on to the courier, and usually they will text you with delivery updates.
Most products are available for next working day delivery if ordered before 2 PM between Monday-Friday.
Expect orders placed on Friday to be delivered on Monday.
PLEASE NOTE:
- Although we do our absolute best to deliver the next working day, it is not guaranteed. At least 99% of our orders do and will arrive the next working day, but there are exceptions.
- We do not offer refunds for late arrival.
- When you receive your email notification from the courier, you will be given the option to change your delivery details. If you use this service and there is an issue with the courier, we accept no responsibility.
- All the delivery prices listed below are inclusive of VAT to the UK Mainland. All other countries will not be charged VAT unless specified.
- No chemicals can be shipped to the UK mainland with the exception of Northern Ireland. Unfortunately, we no longer ship chemicals to Ireland or any other European/International destinations.
SPA COVERS: Unfortunately, due to the size of spa covers, they have to be shipped by freight at a cost of £24.00 and usually take around 3-5 days to be delivered. Stock held covers take around 10-14 days from the time of order to be shipped, custom covers 6-8 weeks from the date of ordering. Covers are only sold and shipped to UK mainland customers, excluding remote areas such as the Scottish Highlands.
