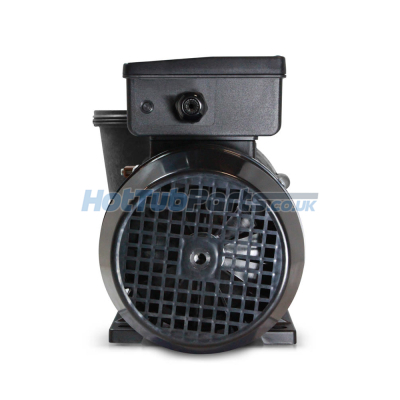

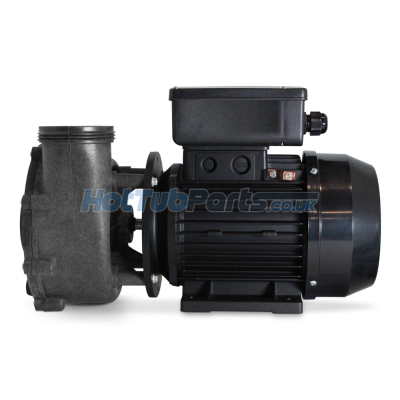

1.5HP 2 Speed Aqua-flo XP2e Pump (2"x 2")
This 1.5hp Aqua-flo XP2e pump is from Aqua-flo's Flomaster range of pumps designed specifically for hot tubs and spas. The XP2e is a direct replacement for the older models of XP2 & XP2e as it has the same wet end dimensions but offers greater water flow.
A powerful pump but economical with a compact 1.5hp 2 speed 80 frame sized Italian EMG motor designed for Europe. 80 (48) frame pumps are Ideal for when space is limited within a spas cabinet and to also replace Aqua-flo pumps with USA smooth bodied motors such as Emerson.
The 1.5hp Aqua-flo XP2e pump has been used by many hot tub brands over the years. This exact pump can be found on Aegean, Master Spa, Sunrise Spas, Artesian, Cal Spas, Clearwater, Coleman Spas, La Spas, Gulf Coast, Saratoga, Marquis Spas, Vita Spas and many more.
Aqua-flo XP2e Pump Overview
- This is a 2 speed pump so the high speed is used for JETS or Boost operation when bathing in your spa or Hot Tub. The low speed is used for the spas heating and filtration modes.

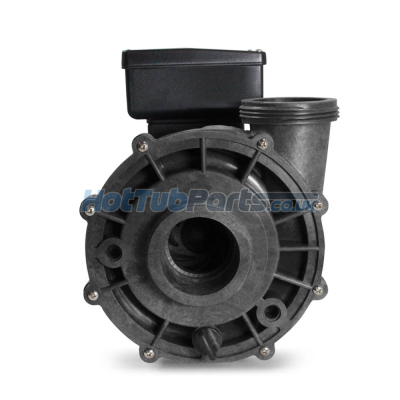

- XP2e wet end connects to 2 inch plumbing unions on the inlet and outlet. Both connections have a 78mm outside thread diameter and you can use 2 inch flat gaskets to seal the connections.
- Wet end can be rotated from the standard 12 O'clock position to 3 O'clock or 9 O'clock position easily by removing the four 1/4" bolts that attach the wet end to the EMG motor.
- Wiring - This replacement Aqua-flo XP2e pump is NOT supplied with a new cable so you will need to swap over from your old existing pump. You will have four wires, two of them are live for high and low speeds (Red, Brown or Black) so make a note when installing. Neutral (Blue or White) and Earth (Green). If you need a new cable for your new pump then see related products.
Pump Specifications
- Manufacturer - Aqua-flo (Gecko)
- Part Number - 05320024-8040
- Model - XP2e 1.5hp
- Type of Product - Hot Tub / Spa Pump
- Number of Speeds - 2 (high speed)
- Motor & Wet End Frame Size - 80 Frame
- Horse Power - Motor 1.5HP
- Amps Low/High - 1.2/6.0
- KW - 1.4
- RPM Low/High - 1440/2840
- Hz - 50
- Dimensions (MM) - Length: 378, Height: 203, Width: 200
We Are Here To Help!
It can be a bit confusing choosing your new pump as brand names and models are not always written on them. The quickest way is to simply send us some images of the Aqua-flo XP2e pump you are replacing through our Contact us page and let us do the work for you.
