ESPA Wiper3 300M 3hp 1 Speed Pump

1 item(s)
HTP2840
-21%
£558.00
(£465.00 Ex. VAT)
RRP ex VAT: £586.03
Manufacturer: ESPA
+

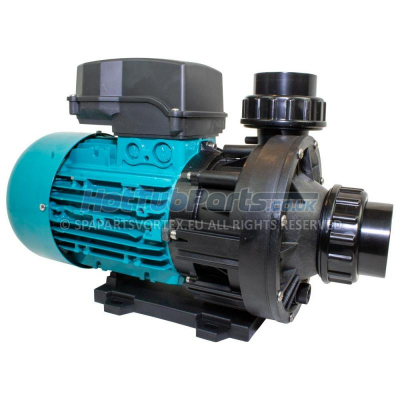

ESPA Wiper3 300M 3hp 1 Speed Pump

Genuine replacement Espa Wiper3 300M 3hp 1-speed pump designed specifically for use with hot tubs and spas. Very easily recognisable by having a distinctive green bodied motor.

This exact ESPA Wiper3 300M 3hp pump can be found on spa brands such as Spaform Hot Tubs from 2004 to 2007, Aegean Spas & Iberspas.

Side Discharge - This means that the inlet and outlet plumbing union connections are offset from each other.

ESPA Wiper3 300M Pump Overview

  • This is a 1-speed pump so the single high speed is used for JETS or Boost operation when bathing in your Spa or Hot Tub.
  • Rear cooling fan & side fins on the motor dissipate heat and help to keep these pumps running cooler.
  • Quiet running motor.
  • Wiper3 300M pump wet end connects to 2-inch plumbing unions on the inlet and outlet. Both connections have an 80mm outside BSP thread diameter, new unions & O'rings are included to seal the plumbing union connections.
  • Wet end can be rotated from the standard 12 O'clock position to 3 O'clock or 9 O'clock position easily by removing the four bolts from the rear of the ESPA motor.
  • Wiring - This complete ESPA Wiper3 300M Spa pump is supplied with a new cable and AMP plug but you may need to swap over from your old existing pump if this is different. You will have three wires, live for the high speed (Brown or Black). Neutral (Blue or White) and Earth (Green). If you need a new cable for your new ESPA pump then see related our products.

Pump Specifications

  • Manufacturer - ESPA
  • Part Number - 203175
  • Model - Wiper3 300M
  • Type of Product - Hot Tub / Spa Pump
  • Number of Speeds - 1 (high speed)
  • Horse Power - 3.0
  • Amps Low/High - 11.0
  • kW Low/High - 2.5
  • RPM Low/High - 2800
  • Volts/Hz - 230/50
  • Dimensions (MM) - Length: 430, Height: 270, Width: 210

We Are Here To Help!

It can be a bit confusing choosing your new pump as models are not always written on them. The quickest way is to simply send us some images of the hot tub pump you are replacing through our Contact us page and let us do the work for you.

Manufacturer:
ESPA
Product Type:
Spa / Hot Tub Pump, Main Water Pump
Part Number(s):
203175
No. of Speeds:
1 Speed
Motor HP:
3HP
Wet End Type:
Side Discharge
Suction Position:
Centre
Union Connection:
2" x 2" (80mm BSP Thread Diameter)
Amps Low/High:
11.0
KW Low/High:
2.5
Length (MM):
430
Width (MM):
200
Height (MM):
270
